STEP-to-voxel conversion

The STEPtoVoxel toolbox converts STEP CAD assemblies into cell-labelled voxel grids that can be imported by gprMax with GeometryObjectsRead/#geometry_objects_read. It preserves assembly components, provides an editable part-to-material mapping, resolves overlaps using explicit priorities, and can export a VTK ImageData file for inspection in ParaView. Every included component also becomes a cell-centred semantic geometry tag by default.

The toolbox is based on the STEP-to-gprMax project developed by Mahdee Abir as part of an MEng project at the University of Edinburgh. The original project is distributed under the MIT License; its copyright and licence notice are retained in LICENSE. The slice-based voxelisation work also builds on ideas from Christian Pederkoff’s stl-to-voxel project.

Installation

STEP reading and tessellation require OpenCascade’s Python bindings. Install them from conda-forge in the environment used to run gprMax:

conda install -c conda-forge pythonocc-core

NumPy and h5py are already gprMax dependencies. PyVista is optional and is only required for direct .vti export and interactive voxel visualisation:

conda install -c conda-forge pyvista

The toolbox imports OpenCascade and PyVista lazily. Normal gprMax usage is therefore unaffected when these optional packages are absent.

Workflow

First inspect the components and dimensions contained in a STEP file:

python -m gprMax.toolboxes.STEPtoVoxel inspect model.stp \
    --voxel-size 0.0001 0.0001 0.0001

Create an editable material-assignment file:

python -m gprMax.toolboxes.STEPtoVoxel prepare model.stp materials.csv \
    --voxel-size 0.0001 0.0001 0.0001

By default, repeated occurrences of the same STEP shape definition share one CSV row. For example, an assembly containing many instances of one screw needs only one material characterisation. The part_names column lists every member and group_confidence=exact_instance explains why they were grouped. The user can split a row into two rows and partition part_names whenever instances require different materials.

The optional geometry_tag column is independent of material_name. A blank value gives every source component its own sanitised component-name tag. Enter one shared value, for example fasteners, when all components in a row should be selected collectively in later output processing. Several components may share a material without sharing a tag, or share a tag while using different materials.

The similar_group column reports geometrically similar candidates without combining them. Approximate grouping is available explicitly when preparing the file:

python -m gprMax.toolboxes.STEPtoVoxel prepare model.stp materials.csv \
    --group-mode similar --group-tolerance 0.01

This comparison uses volume, surface area, topology and principal moments. It cannot prove that two shapes or their materials are identical, so every similar_candidate group must be inspected before properties are entered. Use --group-mode none to retain one row per component. Reusing exactly the same material name and properties in separate rows still stores only one material in the output. Higher priorities overwrite lower priorities where CAD solids overlap. The converter also accepts the earlier one-row-per-part CSV format.

After editing the CSV, perform the conversion:

python -m gprMax.toolboxes.STEPtoVoxel convert model.stp materials.csv output \
    --voxel-size 0.0001 0.0001 0.0001

This creates:

• geometry.h5 – the int16 material grid and compact semantic tag grid read by gprMax;

• materials.json – a versioned material database whose keys are stored in geometry.h5;

• markers.json – reusable CAD source, receiver and port coordinates;

• geometry.vti – component-labelled VTK ImageData for ParaView;

• reference_geometry_cad.vtp – non-physical CAD ports, source edges, points and construction faces in the original CAD coordinate system;

• conversion.json – dimensions, origin, component mapping and voxel counts.

Use --no-vtk if PyVista is not installed.

STEP files describe geometry and component names, but do not provide the electromagnetic constitutive properties required by gprMax. The assignment CSV and generated JSON database therefore serve different purposes. Use the CSV to select and group CAD components, set overlap priority, and map them to stable material names. Its property columns can seed simple constant values, but they are not inferred from STEP and must be supplied by the user.

GeometryObjectsRead consumes the generated materials.json together with geometry.h5. This JSON file is the authoritative runtime database: review or edit it directly to provide the required properties, dispersion, metadata, and citations. Keep the HDF5 and JSON files as a pair. A later conversion preserves an existing JSON file when its stable material keys still match. If the component-to-material mapping changes, the converter stops and asks the user to move the old JSON aside rather than silently discarding its edited properties.

Only material_name is required for an included CSV row. Constitutive property columns may be left blank; the converter then writes null values to make the missing assignments explicit. gprMax will reject such an entry until the corresponding values in materials.json have been completed.

Material names must not contain +: gprMax reserves it for automatically averaged material IDs. Use _ instead in material_name. The same restriction applies to name and metadata.original_id when the converter reuses an edited companion JSON database. CAD part names are not material assignments and need not be renamed. This does not restrict averaged materials restored from files produced by gprMax’s GeometryObjectsWrite.

Coordinate systems

geometry.vti and reference_geometry_cad.vtp retain the original CAD coordinate system and overlay directly in ParaView. geometry.h5 is a local index grid: GeometryObjectsRead translates it to the model position given by p1. A gprMax GeometryView therefore uses model coordinates, not the original CAD coordinates.

To overlay the CAD references on a gprMax GeometryView, translate them by

\[\boldsymbol{\Delta} = \mathbf{p}_1 - \mathbf{x}_{\mathrm{grid\ origin}}.\]

The helper below writes a translated copy while preserving the original VTP:

from gprMax.toolboxes.STEPtoVoxel import translate_reference_geometry

translation = tuple(
    import_origin[axis] - conversion_result.origin[axis]
    for axis in range(3)
)
translate_reference_geometry(
    conversion_result.reference_geometry_cad_file,
    "reference_geometry_gprmax.vtp",
    translation,
)

The converter always writes the CAD-coordinate file. It cannot write the gprMax-coordinate file until the model author chooses p1. The example script writes that translated file from the same import_origin passed to GeometryObjectsRead; the gprMax solver itself does not generate either reference file.

gprMax import

The CAD coordinates are translated into a local voxel grid. The origin_m entry in conversion.json records the original CAD-space lower corner, while p1 specifies where that local grid is inserted into the gprMax domain:

scene.add(
    gprMax.GeometryObjectsRead(
        p1=(0.01, 0.01, 0.01),
        geofile="output/geometry.h5",
        material_database="materials",
    )
)

The gprMax discretisation must exactly match the voxel size recorded in geometry.h5.

Voxelisation and thin CAD solids

The solid voxeliser intersects a tessellated component with parallel planes and fills each closed cross-section. --sweep-axis auto uses the shortest grid dimension and prefers z when dimensions are equal. An explicit x, y or z axis can be selected when reproducing or diagnosing a conversion.

The default --supersample 1 evaluates the centre of every Yee cell. This is the clearest reproducible material-assignment convention. A value greater than one takes that number of samples along each of x, y and z and assigns a cell when a strict majority of the resulting samples is inside. Thus a value of two uses eight samples rather than sampling only one direction.

A closed solid thinner than one cell can lie between all cell centres and disappear. If an otherwise empty solid is thinner than one cell along x, y or z, the toolbox samples its own mid-plane and represents it with one FDTD cell along that axis. This behaviour is enabled by default. It is intended as a loss-prevention safeguard, not as a claim that an unresolved object has been modelled accurately. The generated geometry must always be inspected.

Open or zero-volume CAD faces, edges and points are not converted into solid materials. They are listed during inspection, default to include=n in the material CSV, and are exported separately to reference_geometry_cad.vtp. Such objects are often port planes, source edges, reference points or CAD construction geometry. Load the VTP alongside geometry.vti in ParaView to inspect them without changing the electromagnetic model.

CAD sources, receivers and ports

Non-physical CAD objects can carry source and receiver placement into the gprMax model. Give each marker a case-insensitive name beginning with one of the following portable prefixes:

• gprmax_source_ or source;

• gprmax_receiver_, receiver or rx;

• gprmax_port_ or port.

For example, gprmax_source_tx1, rx2 and port1 are recognised. Markers always default to include=n and cannot be assigned physical material by the converter.

A planar, zero-thickness face is recommended for a wave/coaxial port because it records the aperture bounds, centre and normal axis. A CAD point is ideal for a point source or receiver when the exporter preserves datum geometry. An axis-aligned CAD edge is especially useful for a one-cell electric source: markers.json records both endpoints, its midpoint, length and x, y or z axis. The line direction sign is still arbitrary, so source polarity must be chosen in the model. Many exporters discard isolated points and sketch lines; in that case use a small sphere or box whose centroid marks the position. The marker solid is excluded from voxelisation by its name.

markers.json stores every marker in original CAD coordinates and in local coordinates relative to geometry.h5. If the voxel geometry is imported at p1, its model position is

\[\mathbf{x}_{\mathrm{model}} = \mathbf{p}_1 + \mathbf{x}_{\mathrm{local}}.\]

The Python helper performs this translation:

from gprMax.toolboxes.STEPtoVoxel import load_markers

markers = load_markers("output/markers.json")
source_position = markers["gprmax_source_tx1"].model_position(
    geometry_import_origin=(0.01, 0.01, 0.01)
)

For surface markers the reported normal sign follows CAD tessellation and is not a reliable excitation polarity; the dominant axis is reliable for an axis-aligned plane. Excitation type, waveform, impedance, field component and polarity must still be specified in the gprMax model.

Name recovery

Different STEP exporters attach semantic names to different entities. The reader first uses OpenCascade/XCAF labels, then maps each transferred shape back to its exact STEP entity and searches the referenced entity graph for shape-representation, solid/surface, product, assembly-occurrence and layer names. The selected source and confidence are written to conversion.json and shown by the inspect command. Representation order is used only as a low-confidence fallback for flat files. If an exporter removes semantic names entirely, they must be supplied manually in the material mapping.

Worked example: probe-fed patch antenna

examples/patch_antenna contains a probe-fed microstrip patch exported as an AP242 STEP file. It provides a compact example of the complete conversion and source-placement workflow. The six physical components are PATCH, SUB, GROUND, INNER, DIE and OUTER. A seventh object, port1, is the zero-volume source plane exported by the CAD program.

Important

port1 is placement metadata, not an excitation. It remains outside geometry.h5. The user must select the gprMax source type, waveform, propagation direction and polarity after inspecting the converted model.

The dielectric values supplied with this geometry are illustrative and must be changed to the properties of the manufactured antenna before electromagnetic results are interpreted.

1. Inspect the STEP metadata

From the repository root, list the CAD components before assigning materials:

python -m gprMax.toolboxes.STEPtoVoxel inspect \
    gprMax/toolboxes/STEPtoVoxel/examples/patch_antenna/PROBE_FED.stp \
    --voxel-size 0.00007 0.00007 0.00007

The output should contain the six solids and port1. The latter is reported as a surface with an exact STEP name. If a source edge or receiver point were present, they would be reported and retained in the same reference-geometry workflow.

2. Prepare and edit material assignments

Generate an editable CSV without overwriting the supplied example:

python -m gprMax.toolboxes.STEPtoVoxel prepare \
    gprMax/toolboxes/STEPtoVoxel/examples/patch_antenna/PROBE_FED.stp \
    patch_materials.csv \
    --voxel-size 0.00007 0.00007 0.00007

Assign the real substrate and coaxial-dielectric properties. The intended roles in the supplied example are:

Table 35 Patch-antenna material assignments

STEP component	Example material	Included	Purpose
PATCH	PEC	yes	Radiating conductor
SUB	dielectric	yes	Antenna substrate
GROUND	PEC	yes	Ground plane
INNER	PEC	yes	Coaxial inner conductor
DIE	dielectric	yes	Coaxial filling material
OUTER	PEC	yes	Coaxial outer conductor
port1	none	no	Non-physical source-plane marker

Keep port1 as include=n. The converter rejects a marker that is accidentally enabled as a physical material.

3. Voxelise the assembly

The 35 micrometre patch and ground metallisation require special care. The example uses a 70 micrometre grid and the thin-solid preservation described above:

python -m gprMax.toolboxes.STEPtoVoxel convert \
    gprMax/toolboxes/STEPtoVoxel/examples/patch_antenna/PROBE_FED.stp \
    gprMax/toolboxes/STEPtoVoxel/examples/patch_antenna/materials.csv \
    patch_output --voxel-size 0.00007 0.00007 0.00007

The result is a compact 290 x 290 x 41 voxel grid. The 35 micrometre patch and ground metallisation are thinner than the 70 micrometre cells, so the thin-solid safeguard represents each with one layer. This preserves the conductors but does not make their physical thickness resolved.

4. Inspect the material geometry

Open patch_output/geometry.vti in ParaView and colour it by component_id. The radiating side should show a rectangular patch centred on the substrate; the opposite side should show the coaxial inner conductor, dielectric and outer conductor passing through the ground plane. The two views below were rendered from this component-labelled VTK output.

5. Inspect the source reference geometry

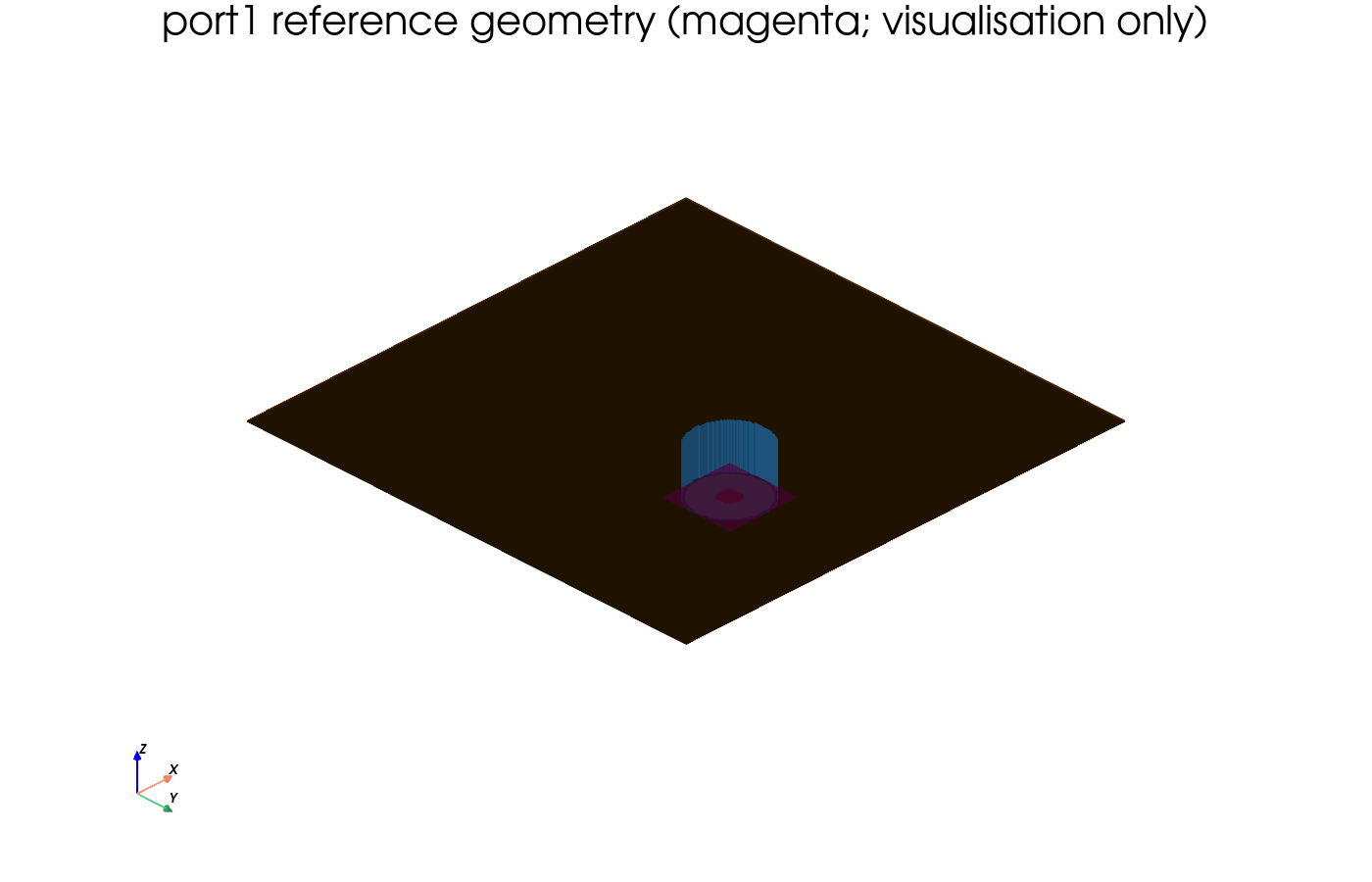

Add patch_output/reference_geometry_cad.vtp to the same ParaView pipeline. Display it as magenta with partial opacity while leaving geometry.vti visible. The overlay below shows the original port1 CAD plane at the bottom of the coax feed. It is not part of the material grid.

The VTP file may also contain named source edges and receiver points. Its reference_geometry_id cell data maps to the reference_geometry list in conversion.json. Numerical source coordinates are obtained from markers.json rather than by reading positions from the visualisation.

6. Import the voxel geometry into gprMax

The supplied Python example performs conversion, imports the HDF5 grid and creates a gprMax geometry view. It also writes output/reference_geometry_gprmax.vtp with the translation required for a direct ParaView overlay:

python gprMax/toolboxes/STEPtoVoxel/examples/patch_antenna/patch_antenna_geometry.py

That Python example performs conversion and import in one run. After it has created the output directory, the equivalent hash-command example can be run with:

python -m gprMax gprMax/toolboxes/STEPtoVoxel/examples/patch_antenna/patch_antenna_geometry.in --geometry-only

The essential import is:

dl = 70e-6
import_origin = (10 * dl, 10 * dl, 10 * dl)

scene.add(gprMax.Discretisation(p1=(dl, dl, dl)))
scene.add(
    gprMax.GeometryObjectsRead(
        p1=import_origin,
        geofile="patch_output/geometry.h5",
        material_database="materials",
    )
)

The gprMax discretisation must be identical to the conversion voxel size. Use reference_geometry_cad.vtp with the converter VTI, or reference_geometry_gprmax.vtp with the gprMax GeometryView. Mixing those coordinate systems displaces the reference plane.

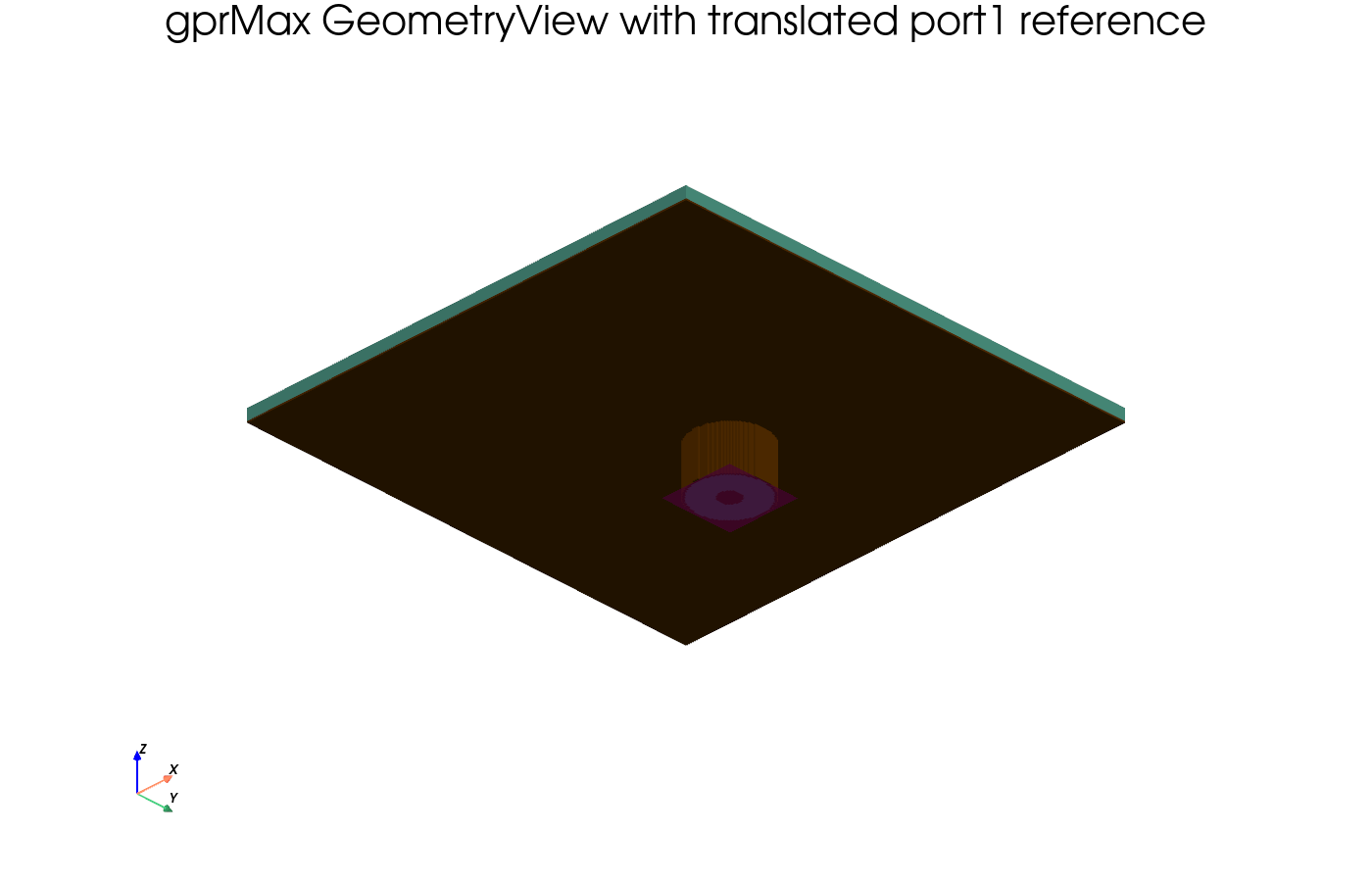

The image below is generated from the actual gprMax GeometryView and the translated VTP. The magenta plane now coincides with the bottom of the coaxial-feed geometry in model coordinates.

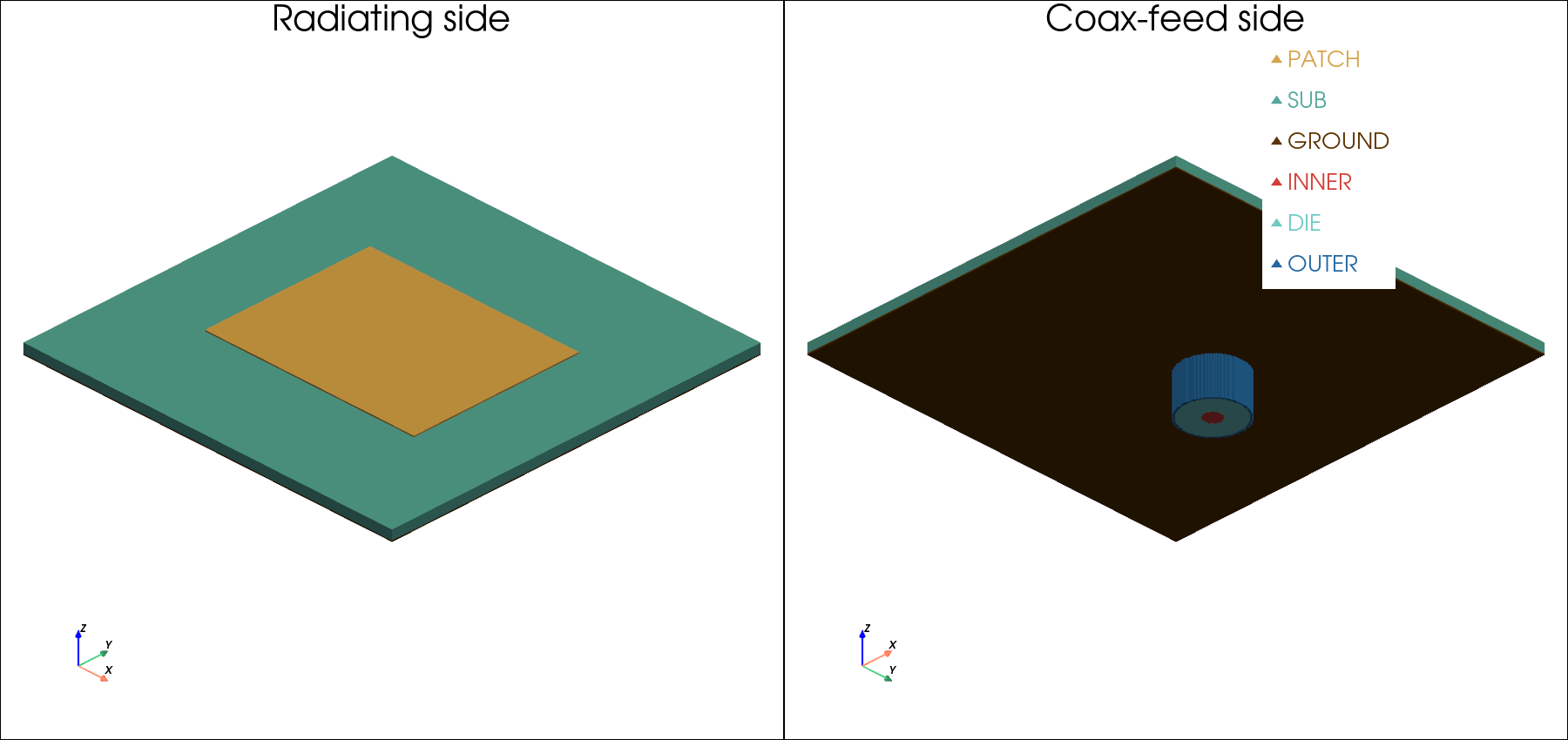

The following ParaView views were exported from probe_fed_70um_gprmax_geometry.vtkhdf, which was produced by the actual gprMax geometry-only run after GeometryObjectsRead imported the voxel model. They therefore show the geometry that gprMax will use rather than the converter preview.

Fig. 83 Radiating patch side of the geometry imported into gprMax.

Fig. 84 Coaxial-feed side of the geometry imported into gprMax.

7. Translate and align the port plane

Load the marker and translate it by the same import_origin used for GeometryObjectsRead:

from gprMax.toolboxes.STEPtoVoxel import load_markers

port = load_markers("patch_output/markers.json")["port1"]
centre = port.model_position(import_origin)
xmin, ymin, _, xmax, ymax, _ = port.model_bounds(import_origin)

def snap(value):
    return round(value / dl) * dl

zport = snap(centre[2])
port_p1 = (snap(xmin), snap(ymin), zport)
port_p2 = (snap(xmax), snap(ymax), zport)

The CAD plane has a very small export tolerance in its normal direction. The code above collapses that thickness to the nearest Yee-grid plane. Inspect the selected slice and, if necessary, move it one cell into a uniform section of the coaxial guide. The axis supplied by the marker is reliable, but the normal sign is not a source-polarity convention.

The resulting port_p1 and port_p2 can define an eigenmode port or another source appropriate to the feed. See Eigenmode ports and S-parameter analysis for modal port and virtual-waveguide excitation. A CAD marker deliberately does not choose this physics on behalf of the user.

Limitations

• Solid voxelisation cannot reproduce zero-thickness sheets as physical material volumes.

• Thin-solid preservation applies when a complete component would otherwise be empty. It cannot recover every thin branch of a larger component or an arbitrarily oriented subcell sheet.

• CAD tessellation and voxelisation necessarily staircase curved and oblique surfaces.

• Approximate material grouping is a convenience suggestion and does not establish material identity.

• Very fine grids are memory intensive because the final material array is dense.

• Part names depend on exporter metadata. A fallback recovers flat AP242 shape representation names when OpenCascade exposes only generated label paths.

• Material overlap priorities must be checked for nested or intersecting assembly components.
