Eigenmode ports and S-parameter analysis
An eigenmode port solves the transverse field pattern of a waveguide and measures incoming and outgoing modal waves. An excitation chooses which pattern to launch. A broadband pulse and one time record can provide results at many frequencies, without a separate full simulation for every frequency.
This guide explains setup and interpretation for users familiar with electromagnetic simulation. Python comes first, followed by compact hash equivalents. The field equations, discrete operators, and numerical algorithms are in Eigenmode ports: theory and numerical methods.
The published HTML guide renders the shared parameter tables that GitHub’s source preview cannot expand.
On this page
First two-port model
The three main objects are gprMax.EigenmodeBand,
gprMax.EigenmodePort, and gprMax.EigenmodeExcitation. Add them to the
same gprMax.Scene as the geometry and materials. A band defines the
frequencies to measure, a port defines a reference plane and monitored modes,
and an excitation selects a channel to drive. A channel is a
(port, mode) pair.
For a conventional independently driven measurement, one excitation produces
one S-matrix column. Several excitations produce a
coherent driven state and its active reflection coefficients. To recover a
complete S matrix, use EigenmodeStudy with independent excitation cases.
Excitation may be omitted only when every port has a passive
VirtualWaveguide; this writes raw modal spectra without S-parameters.
Creating and running a scene
This is a complete two-port 2D dielectric-waveguide model. Coordinates and
cell sizes are in metres, frequencies in Hz, and times in seconds.
float("inf") denotes the invariant extent of a 2D model.
from pathlib import Path
import gprMax
inf = float("inf")
scene = gprMax.Scene()
scene.add(gprMax.DomainMode(mode="TM"))
scene.add(gprMax.Domain(p1=(0.24, 0.08, inf)))
scene.add(gprMax.Discretisation(p1=(0.001, 0.001, 0.001)))
scene.add(gprMax.TimeWindow(time=5e-9))
scene.add(gprMax.PMLThickness(thickness=(5, 5, 0, 5, 5, 0)))
scene.add(gprMax.Material(er=9, se=0, mr=1, sm=0, id="core"))
scene.add(gprMax.Box(
p1=(0, 0.03, 0), p2=(0.24, 0.05, inf), material_id="core",
))
scene.add(gprMax.EigenmodeBand(
id="band", fmin=4e9, fmax=6e9, points=21,
))
scene.add(gprMax.EigenmodePort(
port=1, p1=(0.02, 0.005, 0), p2=(0.02, 0.075, inf),
direction="+", modes=(1, 2), anchors="auto",
))
scene.add(gprMax.EigenmodePort(
port=2, p1=(0.235, 0.005, 0), p2=(0.235, 0.075, inf),
direction="-", modes=(1, 2), anchors="auto",
))
scene.add(gprMax.EigenmodeExcitation(port=1, mode=1, waveform="auto"))
gprMax.run(scenes=[scene], outputfile=Path("straight_waveguide"),
geometry_only=True)

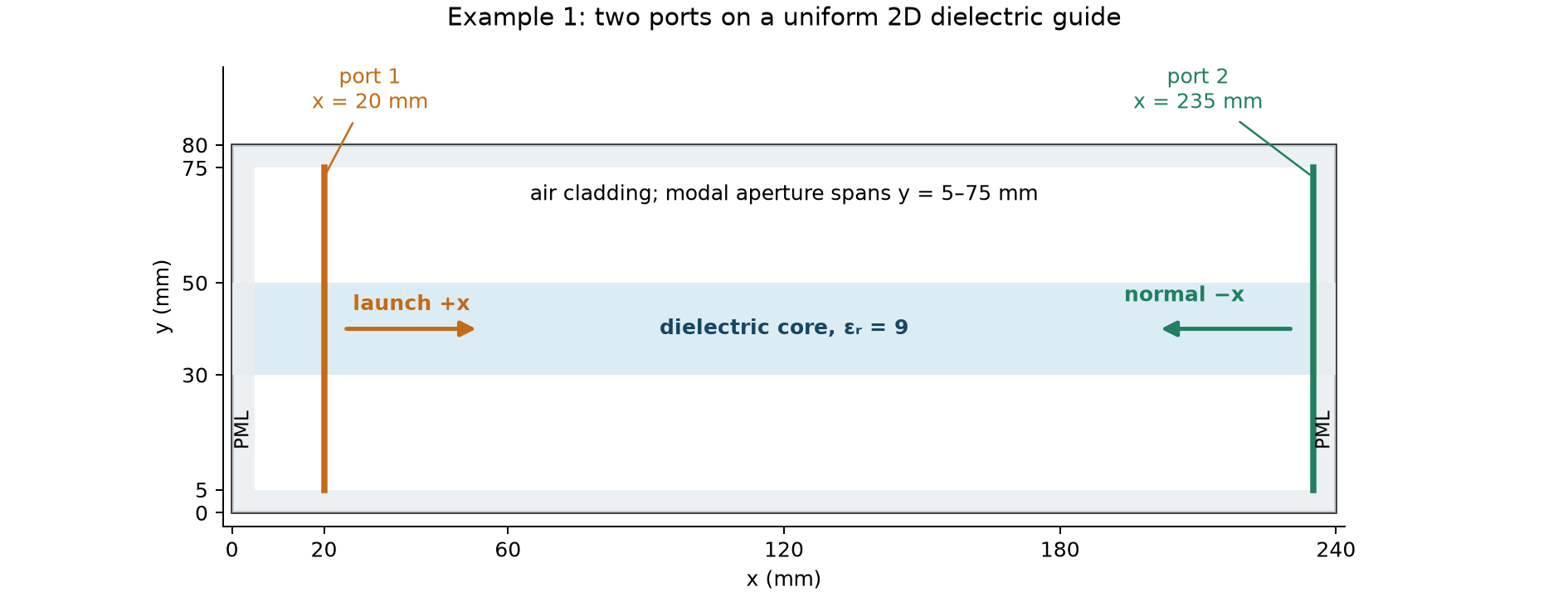

Fig. 9 The two port planes span the guided field and its tails. Port 1 launches towards +x; port 2 faces the arriving wave from the opposite end. The uniform guide continues to the boundary PML.
First use geometry_only=True to build the material grid and solve the
modes without FDTD time stepping. Inspect the modal-field and waveform PNGs.
Set geometry_only=False to accumulate the spectra and write the HDF5 and
S-parameter CSV files. The example scripts below package these two operations
behind --geometry-only and the default full run, respectively.
Before interpreting S-parameters, check the termination: the port itself does not absorb returning waves. This example extends the physical guide through the domain PML, an absorbing layer at its boundary. An internal feed can instead use a VirtualWaveguide: a matched termination.
For a runnable script and result plots, use:
python examples/features/eigenmode_ports/example_1_straight_waveguide/straight_waveguide.py --geometry-only
python examples/features/eigenmode_ports/example_1_straight_waveguide/straight_waveguide.py
python examples/features/eigenmode_ports/example_1_straight_waveguide/plot_results.py

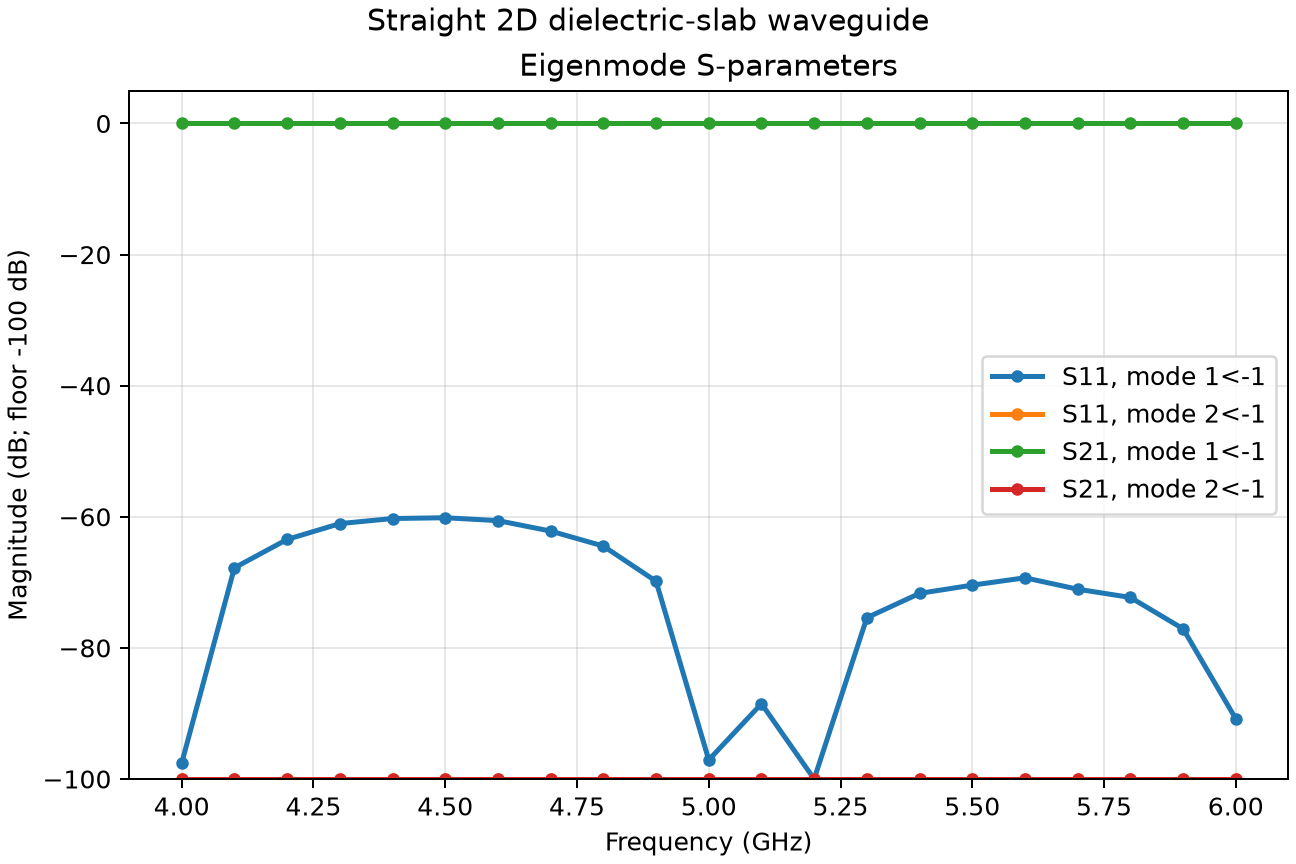

The full run writes straight_waveguide.h5 and
straight_waveguide_sparameters.csv beside the script. Expect mode-1
transmission near 0 dB, with small reflection and conversion into mode 2.

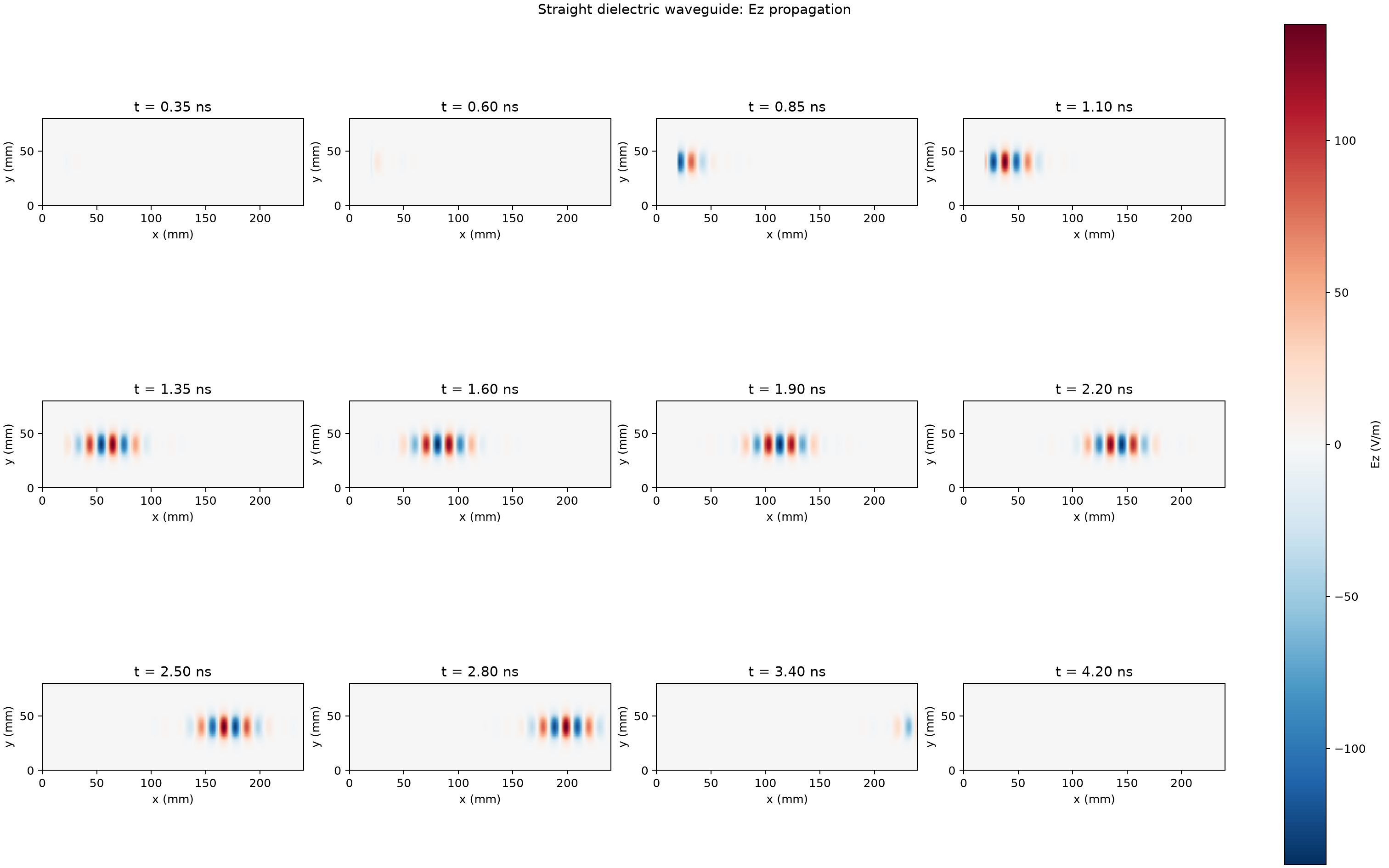

The plotter also shows the pulse travelling through the guide. See
Reading coefficients and validity for mask-aware interpretation; a finite coefficient
alone is not evidence of a trustworthy power ratio.
Configuring ports
EigenmodeBand arguments
gprMax.EigenmodeBand(
id="band", fmin=4e9, fmax=6e9, points=21,
frequencies=(4.25e9, 4.75e9),
transition="auto", spectral_threshold=1e-3,
)
Argument |
Default |
Meaning and constraints |
|---|---|---|
|
Required |
Non-empty identifier without whitespace. Exactly one band is allowed per grid. |
|
Required |
Positive, finite frequency limits with |
|
Required |
Number of equally spaced output frequencies from |
|
No extra frequencies |
Extra output frequencies in Hz, between |
|
|
Automatic pulse transition width, or a positive finite width in Hz. |
|
|
Relative amplitude threshold for significant waveform spectral support; strictly between zero and one. |
For example, fmin=4e9, fmax=6e9, and points=3 select
4, 5, and 6 GHz. Adding frequencies=(4.5e9, 5e9) gives the final list
4, 4.5, 5, and 6 GHz. The existing 5 GHz value is included only once, so the
final number of output frequencies can be larger than points.
Every port measures at the same final list of output frequencies. Increasing points
or adding frequencies increases output sampling; it does not request more
modal field solves. Those solves are controlled by EigenmodePort.anchors.
When NTFFAntennaPorts uses modal power, every NTFF frequency must be in
this list. NTFF may use fewer of these frequencies, so a dense S-parameter sweep
can share power data with a sparse far-field calculation.
Hash command: #eigenmode_band
#eigenmode_band: band 4e9 6e9 21 4.25e9 4.75e9
The optional trailing values add output frequencies to the equally spaced
frequencies selected by fmin, fmax, and points. Square brackets
denote optional arguments and are not typed into an input file.
transition and spectral_threshold are Python-only controls; the hash
command uses their defaults.
EigenmodePort arguments
gprMax.EigenmodePort(
port=1, p1=(0.02, 0.005, 0), p2=(0.02, 0.075, float("inf")),
direction="+", modes=(1, 2), anchors="auto", plot_fields=None,
tracking="legacy",
)
Argument |
Default |
Meaning and constraints |
|---|---|---|
|
Required |
Unique positive, one-based port number within the grid. |
|
Required |
Opposite physical corners of an axis-aligned aperture. Exactly one finite coordinate must match, defining its normal; the invariant 2D axis is ignored in that test. |
|
Required |
|
|
Required |
An increasing sequence of unique positive mode indices, or a positive integer mode count. |
|
|
One modal solve frequency, an increasing sequence of positive finite frequencies, or automatic candidate selection. |
|
|
|
|
|
Experimental |
|
|
Applies only with automatic tracking. |
|
|
Optional |
|
|
Legacy tracking only: a group such as |
|
|
Optional single transverse axis ( |
Place the aperture in a longitudinally uniform section and include the whole guided field, including evanescent tails around a dielectric core. The normal comes from the matching coordinate: equal x coordinates give an x-normal port, equal y coordinates a y-normal port. Mode numbers are solver ordering, not guaranteed physical labels. Inspect the E/H profiles before identifying a solution as TE10, quasi-TEM, or a particular guided slab mode.
Every port window has a PEC transverse rim: tangential electric fields are zero there, whether or not a virtual waveguide is attached. To retain an SIBC wall’s impedance and loss, put that wall inside the window with at least one opaque voxel beyond it. An SIBC wall exactly on the rim becomes PEC in the modal solve and virtual guide.
Set tracking="auto" to enable experimental branch assignment, automatic
degeneracy detection, symmetry-based basis selection, and mode-quality diagnostics.
Explicit mode_polarizations takes precedence for pair orientation. See
Eigenmode tracking guide for setup, parameters, and interpretation.
The default "legacy" uses manual groups and skips symmetry selection.
An excited port launches the selected modal field and measures returning waves, but it does not absorb those waves. Continue the guide behind the port through a domain PML, or attach a VirtualWaveguide: a matched termination to provide a matched termination. Point receivers are optional diagnostics; S-parameters come from the modal port monitors.
Hash command: #eigenmode_port
#eigenmode_port: 1 0.02 0.005 0 0.02 0.075 inf + 1,2 auto
#eigenmode_port: 1 0.02 0.005 0 0.02 0.075 inf + 1,2 auto tracking=auto verification=full
#eigenmode_port: 2 0.235 0.005 0 0.235 0.075 inf - 1,2 4e9 5e9 6e9 y
Use inf for an invariant extent and comma-separated mode indices such as
1,2. Specify auto or space-separated modal anchor frequencies. The
optional final y or n forces or suppresses the port’s field plots;
omitting it retains the geometry-only default.
Named hash options may follow the anchor/plot tail. Automatic tracking accepts
tracking=auto and verification=full|fast. Advanced names match
EigenmodeTrackingConfig fields, for example
residual_tolerance=1e-7, edge_fraction_max=1e-3, and
max_solves=200.
EigenmodeExcitation arguments
gprMax.EigenmodeExcitation(
port=1, mode=1, waveform="auto", amplitude=1.0,
phase_deg=0.0, delay_s=0.0, plot_waveform=None,
)
Argument |
Default |
Meaning and constraints |
|---|---|---|
|
Required |
Existing port and one of its monitored modes. Each driven channel must be unique. |
|
|
Band-adapted finite pulse, or the ID of an explicitly added |
|
|
Finite nonzero modal-amplitude scale. Omit the excitation to make a channel passive. |
|
Not set |
Positive finite relative incident-power scale, applying amplitude |
|
|
Finite constant spectral phase in degrees. |
|
|
Finite true time delay in seconds, applied as |
|
|
Force or suppress the waveform/spectrum PNG with |
Automatic excitation requires fmax > fmin and a time window long enough
to contain the pulse. For a single-frequency band, add an explicit waveform,
for example gprMax.Waveform(wave_type="contsine", amp=1, freq=5e9,
id="tone"), and select waveform="tone". A custom broadband waveform’s
exact sampled spectrum must fit the declared band’s supported coverage.
Significant DC and Nyquist bins are warned about and discarded; more than
one percent of spectral power outside the allowed band is rejected. Use a
band-limited pulse rather than extending a measurement sweep over
frequencies the source cannot represent.
The automatic pulse has smooth spectral transitions outside the output band;
the anchor policy accounts for significant transition energy.

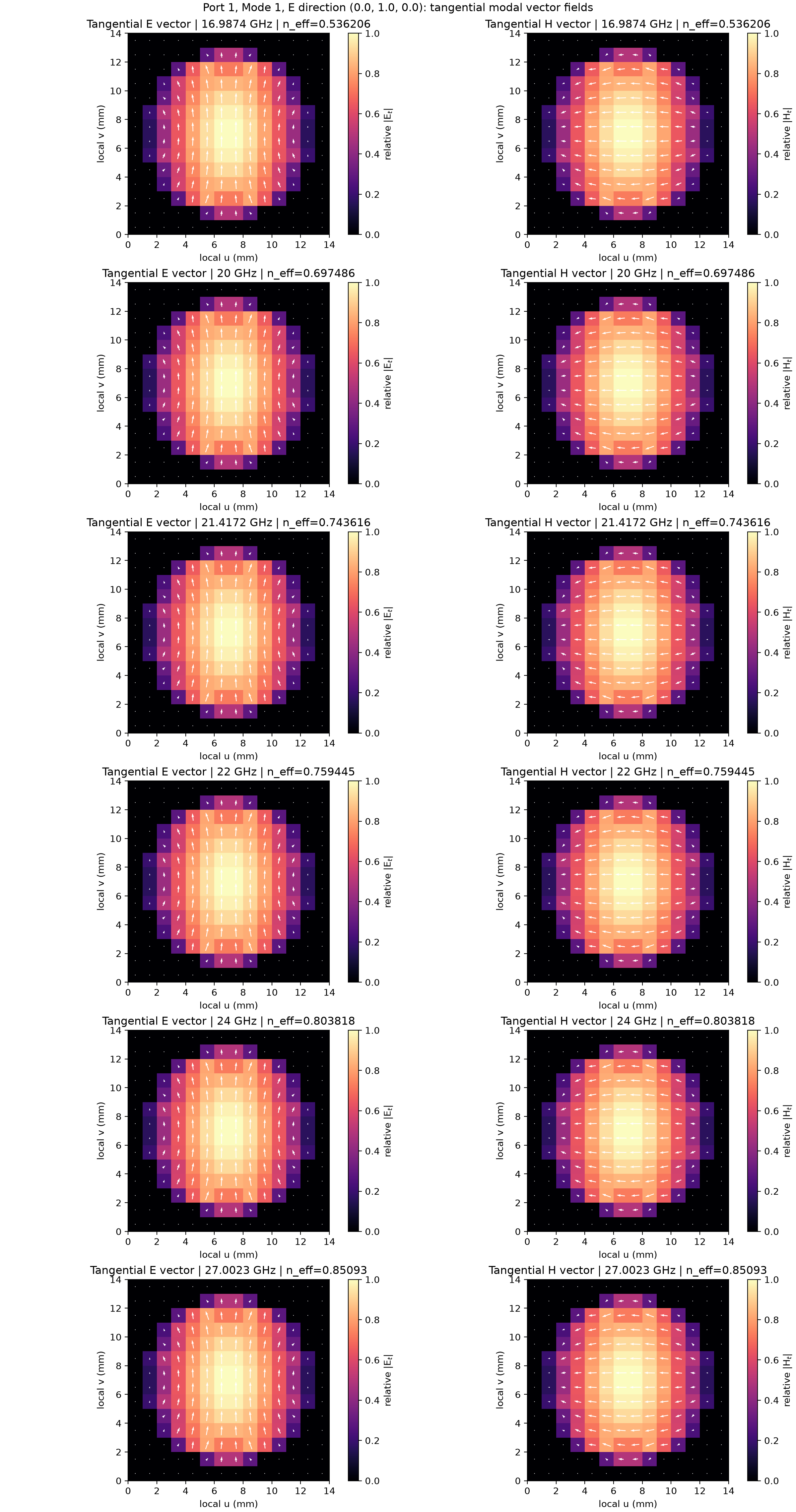

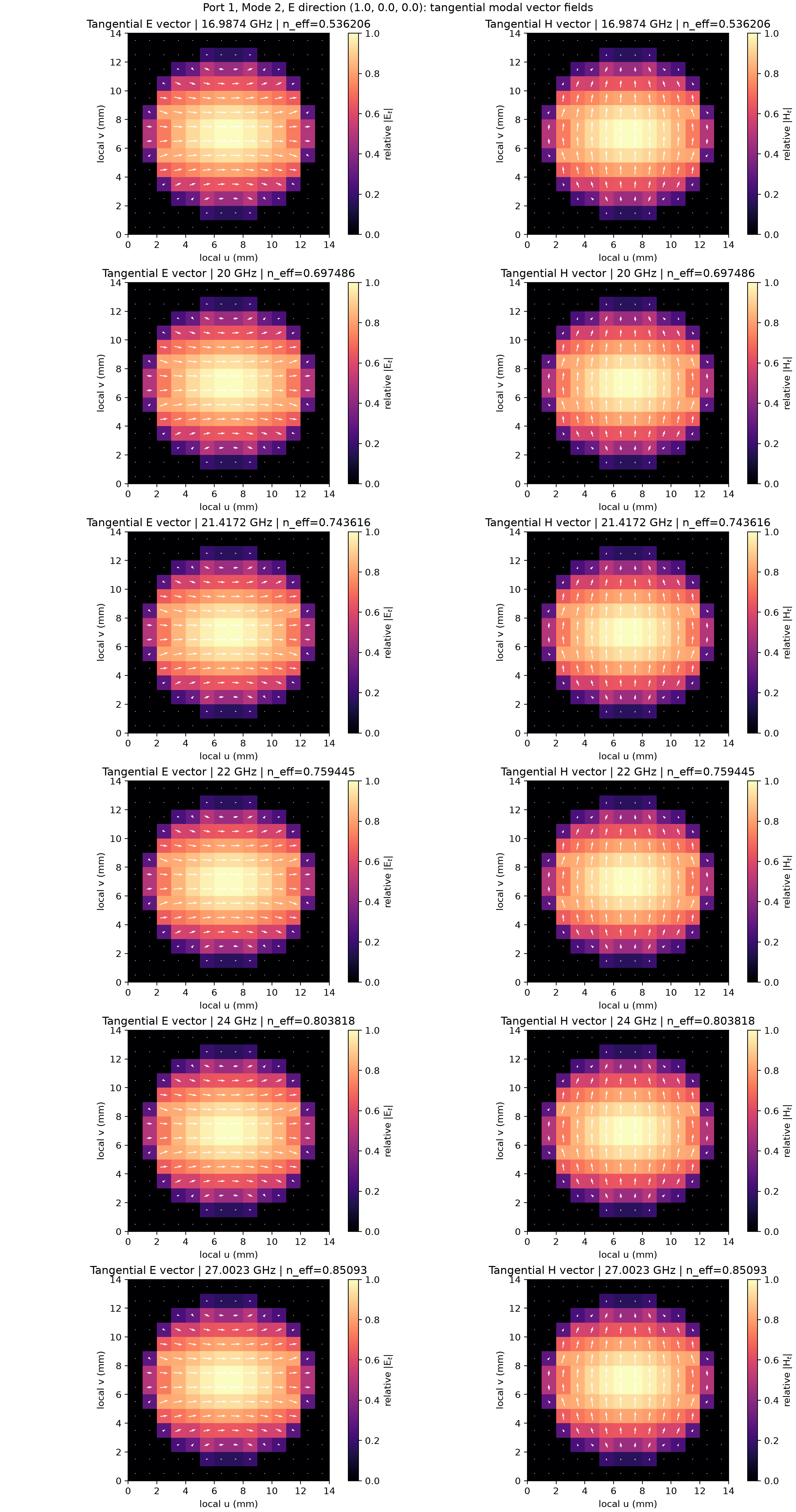

The diagnostic files are <output>_PortN_ModeM.png and
<output>_EigenmodeExcitation.png. Each modal anchor occupies one row with
tangential E and H vectors. With multiple drives, excitation filenames also
include _PortN_ModeM. The waveform figure shows the sampled pulse, its
surrounding spectrum, the requested band, and the exact output DFT bins.
Hash command: #eigenmode_excitation
#eigenmode_excitation: 1 1 auto
#eigenmode_excitation: 2 1 auto 0.5 90 0 y
The waveform, amplitude, phase, and delay default to auto, 1, 0, and 0.
Supply preceding positional values when setting later values. The final
y or n independently controls this drive’s waveform/spectrum plot;
omitting it retains the geometry-only default. Repeated commands drive
distinct channels of one coherent state. The hash interface uses amplitude;
power is a Python-only alternative.
Two-dimensional fields and mode names
In a 2D model, one spatial direction is invariant: geometry and fields are
assumed constant along it. Use float("inf") to span it in the domain,
geometry, and port aperture. DomainMode(mode="TM") retains electric
field along the invariant axis and magnetic field in the physical plane;
"TE" retains the complementary components. This choice is defined
relative to the invariant axis, not the waveguide’s propagation axis.
It is distinct from naming a 3D waveguide mode TE10 or TE11.
The modal solver uses a line cross-section in 2D and an area cross-section in 3D. Its propagating profiles are normalized to one watt per metre in 2D and one watt in 3D; the pulse amplitude scales those fields. A synthetic invariant mesh spacing does not specify a physical guide width. See Mode Selection, Fields, and Power for the integrals and phase convention.
Placement and accuracy checks
This feature is experimental. It requires an internal port, a locally uniform, non-dispersive cross-section, and at least two cells across each physical transverse direction. Reduced 2D TE/TM guides use the CPU solver. SIBC walls, including surface dispersion and exact PMC, are supported with the retained-host and extrusion restrictions described in Waveguides and absorbers. Main-grid CPU, CUDA, OpenCL, Metal, and domain-decomposed MPI CPU paths are supported; HSG subgrid virtual ports use the CPU or CUDA fine-grid update cycle.
For PEC guides, the modal solver samples the final electric Yee PEC masks used by FDTD. Both averaging settings are supported; object order and averaging still determine the represented wall shape. Examples 8 and 9 demonstrate two constructions and test both modal polarizations. See PEC wall construction and averaging under Example 7 for the geometry implications.
Tracking confidence controls mode identity, not the interpolation error of modal impedance between anchors. For small-reflection measurements, also check convergence with closer frequency anchors, especially near cutoff, and with PML thickness and recording duration.

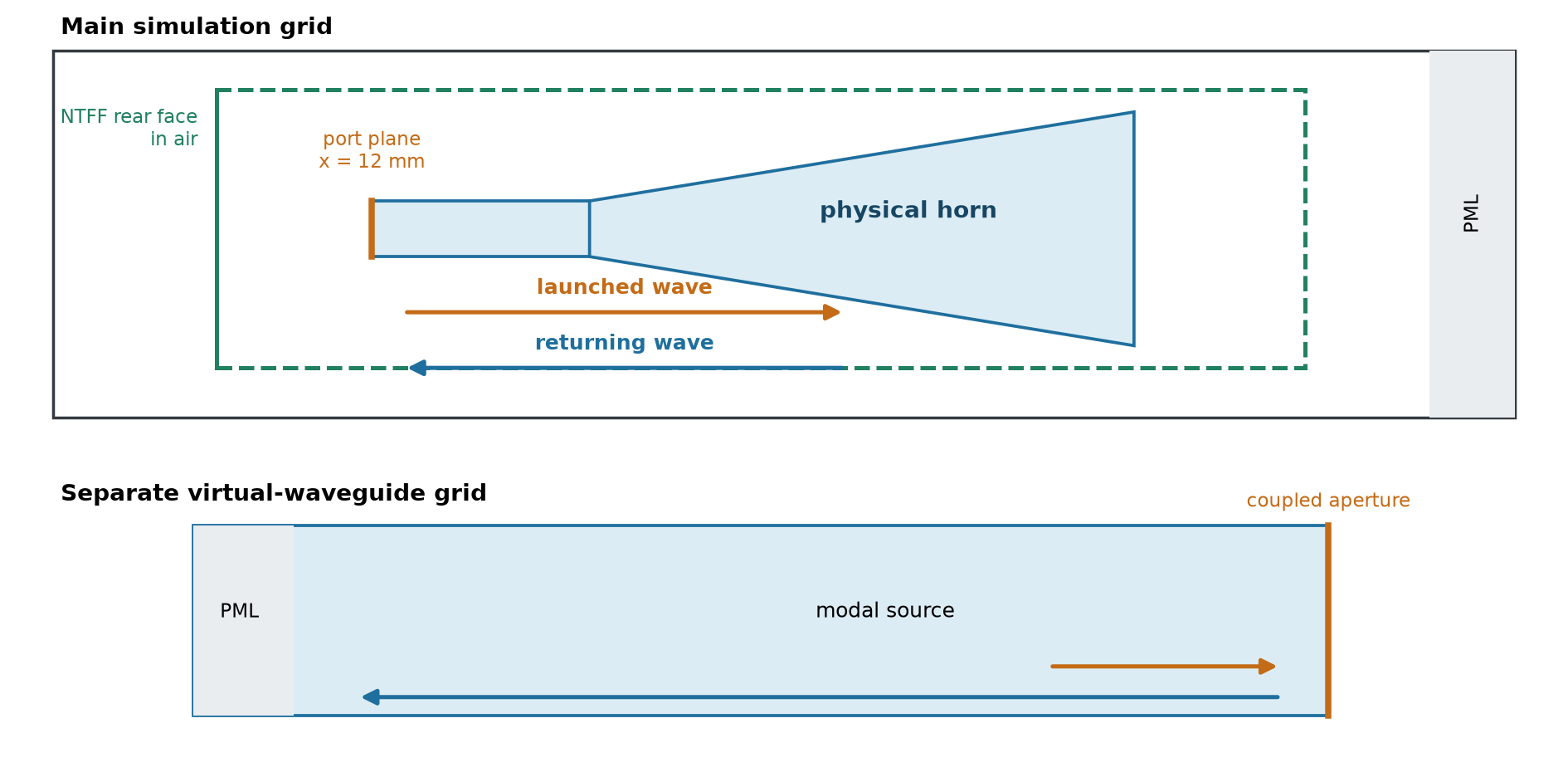

For an antenna, enclose the entire physical antenna and feed aperture with
the NTFF box. Keep every face in the intended homogeneous background, clear
of the aperture and metal, and outside the domain PML. Both a closed
equivalent-current surface and KSIR can be used; KSIR requires all six
physical faces. For gain calculations, use a rectangular transform window
and an NTFFAntennaPorts association listing every physical port,
including passive ports. See the complete horn example for these settings.
Start with the default guide settings and inspect the geometry and modal
field plots using geometry_only=True. Then repeat the full run with a
longer auxiliary guide, a thicker PML, and different source clearance,
changing one control at a time and respecting the length constraint. Also

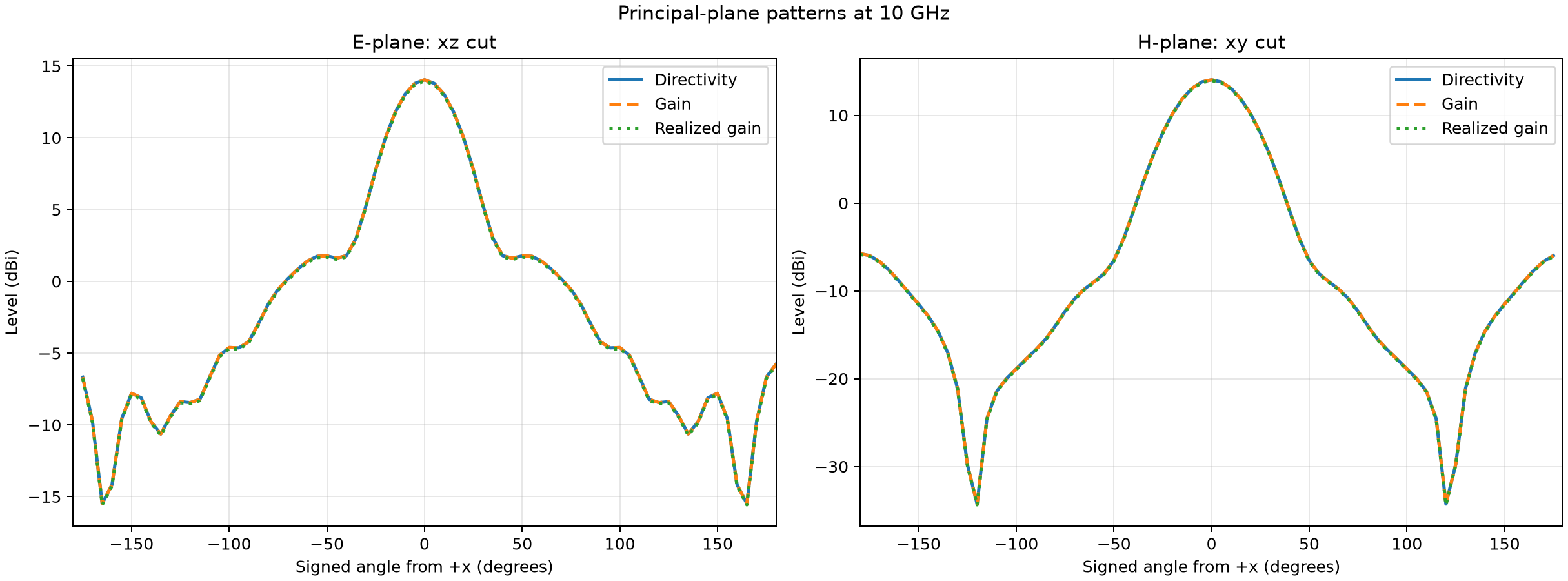

refine the mesh. Check that S11 and any requested radiation patterns or gain
change by less than the accuracy your application needs. A finite PML is an
approximation to a matched termination, so the defaults are a starting point,
not a guarantee of negligible reflection for every guide and frequency band.
Choosing frequency anchors
An eigenmode is the electric and magnetic field pattern that a guide supports at a particular frequency. An anchor is a frequency at which gprMax solves that pattern directly. The field pattern, the relative sizes of its electric and magnetic fields, and its propagation constant can change with frequency. The propagation constant determines how quickly the wave’s phase changes as it travels along the guide.
With a single anchor, gprMax uses one solved pattern and effective index throughout the pulse’s frequency range. This is a useful approximation for a narrow band or a mode that changes little over the band. For a wide band, however, the pattern at the centre may describe the band edges poorly. The source can then launch a less accurate wave, and the monitor can misidentify how much of the measured field is incoming or outgoing.
Multiple anchors let gprMax follow these changes. It solves the guide’s cross-section at several frequencies, matches the same physical mode between solutions, aligns their phases, and interpolates between the retained solutions. This gives the source and monitors a reference that varies with frequency. When the mode changes smoothly and is tracked successfully, this can reduce reflection caused by an inaccurate injected mode and improve the amplitude and phase of the extracted S-parameters across the band.
These are additional cross-section solves during setup; they do not require one complete FDTD simulation per anchor. A broadband pulse still covers many frequencies in one time-domain run. Anchors and output frequency bins have different jobs: anchors control how accurately the mode is represented, whereas output bins select where the measured spectrum is reported. Asking for more output bins alone does not improve the modal reference. More anchors increase setup cost and storage, so compare results as you refine their spacing instead of assuming that a larger list is always better.
anchors="auto" gives automatic ports a common candidate list covering the
output band and significant excitation spectrum. Candidates include band
edges, centre, spectral limits, and geometrically spaced intermediate values.
Extra candidates outside the output band cover parts of the pulse that can
still excite the model. Tracking and the decision to retain or discard an
anchor are resolved independently for each port and mode, or whole declared
degenerate group. Passive-only setups use the requested band alone.
Use explicit anchors where the mode changes rapidly, especially near cutoff, as in example 6. Cutoff is the boundary between a travelling mode and a field that decays along the guide. Closer anchors can resolve a smooth but rapid change. A scalar or one-element tuple selects one fixed modal profile; use it for a narrow band or when the mode cannot be matched uniquely across a wider band.
Multiple anchors can fail for several different reasons:
The anchors are too far apart. Their patterns may differ too much to identify them confidently as the same mode. Inspect the fields and try closer spacing in the region of rapid change.
Two modes become indistinguishable or exchange order. The mode number alone does not guarantee the same physical pattern at every frequency. Interpolating unrelated patterns would create an incorrect reference. With legacy tracking, declare a complete degenerate group using
degenerateand optionally select physicalmode_polarizations. Withtracking="auto", grouping and branch assignment are automatic;mode_polarizationsremains an optional physical-direction override. A resolved split requires independent modes rather than degenerate mixing.The mode reaches cutoff or a non-propagating gap. A decaying, or evanescent, mode cannot supply the same one-watt travelling-wave source as a propagating mode. The interpolation cannot bridge a gap where that travelling mode ceases to exist. At exact cutoff, separating forward and backward waves can also become numerically ambiguous. Split disconnected propagating ranges into separate bands and inspect the validity masks near cutoff.
The legacy tracking check measures the similarity, or overlap, of neighbouring patterns. An overlap below 0.9 warns; below 0.6 the match is treated as ambiguous. With automatic anchors, gprMax may discard a failing candidate outside the output band and use the nearest retained endpoint there. An in-band failure for an independently tracked mode may instead select a single band-centre anchor, provided that it carries forward real power. This allows the run to proceed with a fixed reference, whose accuracy can decrease away from that frequency. Multiple explicit anchors remain strict: a tracking failure is an error that requires revising the anchor choice.
Automatic tracking first uses candidate assignment and adaptive solves to resolve identities, as described in Eigenmode tracking theory. Persistent ambiguity still follows the automatic-anchor fallback or explicit-anchor error policy. Confinement or artifact warnings alone do not trigger either response.
Two anchor banks serve different purposes. anchor_mode_valid selects
propagating profiles for source injection and power normalization.
anchor_mode_reference_valid also admits tracked evanescent patterns, so a
monitor can describe a decaying field even when it cannot treat that field
as a power-carrying wave. Interpolation stays within a contiguous branch and
never mixes propagating and evanescent references across cutoff. Every
requested mode, including passive monitored modes, must retain at least one
forward-real-power anchor. Inspect the profiles, RequestedAnchorPolicy,
ResolvedAnchorPolicy, CandidateAnchorFrequencies, and the retained
anchor masks in HDF5 to see which references were actually used.
Legacy declared degenerate groups are stricter: legitimate guard trimming or cutoff exclusion applies to the whole group, and a failed group does not fall back one member at a time. Resolved splitting, rank loss, or failed in-band subspace tracking is an error. See Degenerate subspaces and physical alignment for the tests used to make that decision.
Running hash input files
Run a hash model with python -m gprMax model.in --geometry-only to inspect
it, then python -m gprMax model.in -outputfile results/model to simulate.
The tutorial models below are Python programs and run directly with Python.
Terminating the feed
VirtualWaveguide: a matched termination
In CST or HFSS, you often use a waveguide port that does two jobs: it injects a chosen waveguide mode and absorbs waves returning to the port from the device. A mode is the electric and magnetic field pattern that travels along the guide. A matched termination accepts a returning wave with as little additional reflection as possible, as though the guide continued indefinitely.
In gprMax these jobs are separate. EigenmodePort together with
EigenmodeExcitation supplies the modal injection and measurement, but
the eigenmode port itself does not absorb the returning wave. The wave
can pass back through the source plane and continue along the feed. If it
then reaches a reflecting end, it can bounce back into the device and alter
the result.
The usual finite-difference time-domain (FDTD) solution is to extend the real waveguide behind the port into the domain PML. FDTD advances electric and magnetic fields on a grid of cells; the domain is the physical region represented by that grid. A PML (perfectly matched layer) is an absorbing layer at its boundary. Keeping the feed’s cross-section unchanged as it enters this layer lets returning waves leave the model with little reflection.
This arrangement can be inconvenient for an antenna. A near-to-far-field (NTFF) box is an imaginary measurement surface around the antenna: fields recorded on its faces are used to calculate radiation far away. For a closed box in homogeneous air, we want to enclose the entire antenna and its feed aperture without a metal or dielectric feed crossing a face. A real feed running all the way to the domain PML can prevent that arrangement.
VirtualWaveguide provides a matched termination at an internal port, so
the physical feed no longer needs to extend to the domain boundary. Despite
its name, its practical purpose is to terminate the port. The extra guide
is simulated in a separate, auxiliary grid, leaving room in the main domain
for the rear face of a closed NTFF box. The main domain still needs its own
PML to absorb radiation leaving the antenna.
How the virtual waveguide works
gprMax copies the material cross-section at the port into a separate, straight numerical waveguide. This auxiliary grid uses the same cell sizes and time step as the grid containing the port, and has its own PML at the far end.
The port aperture connects the two grids. Electric and magnetic fields are exchanged at every time step, allowing waves to travel through the connection in both directions. A wave returning from the device enters the auxiliary guide and travels to its PML, where it is absorbed.
If the port has an
EigenmodeExcitation, gprMax places that source inside the auxiliary guide. The launched wave travels through the aperture into the physical feed. If there is no excitation on that port, it simply acts as a passive matched termination.
The following diagram separates the physical horn geometry from its numerical continuation; it is schematic and not drawn to scale.
Fig. 10 The port plane couples the two grids. The virtual guide carries a launched wave into the horn and a returning wave towards its own PML. The NTFF rear face remains in air behind the physical feed.
The auxiliary guide does not occupy space behind the port in the main geometry, so it does not cross the NTFF box. Its fields are still calculated during the run, so it adds some memory and time-stepping cost. The modal monitor remains at the physical port plane, where it measures incident and outgoing waves for S-parameters.
A matched termination reduces reflections from the feed termination; it does not remove the antenna’s own mismatch or force its S11 to zero. The antenna’s reflected wave is measured at the port before travelling into the auxiliary absorber. The approach follows Wang and Langdon [WAN2010]; see Virtual-guide aperture coupling for the field-update equations.
How to use it
Place an EigenmodePort at the end of a straight, uniform section of the
physical feed, inside the simulation domain. Point direction toward the
device: for an x-normal port, "+" launches toward increasing x and the
virtual continuation represents the feed behind it, toward decreasing x.
The aperture must cover the guided field and have the same material
cross-section immediately on either side of the plane. Keep bends, tapers,
and other changes away from this connection.
Add one VirtualWaveguide referring to that port number. Keep the
EigenmodeExcitation if the port should transmit; omit it if the port
should only absorb. You do not draw the auxiliary guide or add its PML to
the physical geometry yourself.
For passive surface-impedance walls, CPU main-grid 3D and 2D TE/TM models can use the same continuation, including fitted metal and infinite-resistance PMC. Follow Waveguides and absorbers for uniform extrusion and retained-host restrictions. The window may cut across an SIBC ground plane: both the modal solve and auxiliary guide replace rows whose magnetic stencil crosses the artificial PEC rim. Every port uses a PEC window boundary, with or without a virtual guide, including where a complete SIBC wall lies on the rim. Extend the window at least one opaque voxel beyond a wall to retain its surface impedance and loss in the modal solve and auxiliary guide. Enlarge the window to check that a PEC cut does not materially affect the result. In 2D the rim applies only along the physical transverse axis. The general virtual-guide backend support does not extend SIBC to accelerators, MPI, or subgrids.
For example, this is the feed configuration from Example 3: a pyramidal
horn antenna. It assumes that scene already contains the 3D domain,
mesh, materials, and horn geometry from that example; this snippet alone is
not a complete model. Coordinates are in metres and frequencies are in Hz.
scene.add(gprMax.EigenmodeBand(
id="eigenmode_band", fmin=8e9, fmax=12e9, points=101,
))
scene.add(gprMax.EigenmodePort(
port=1, p1=(0.012, 0.033, 0.029), p2=(0.012, 0.057, 0.041),
direction="+", modes=(1,), anchors="auto",
))
scene.add(gprMax.VirtualWaveguide(
port=1, length_cells=30, pml_cells=12,
source_clearance_cells=6,
))
scene.add(gprMax.EigenmodeExcitation(port=1, mode=1, waveform="auto"))
The physical feed starts at x = 12 mm and points toward the horn. The example’s closed NTFF box has its rear face at x = 10 mm, in air behind the feed. The virtual continuation uses separate grid storage, so its 30-cell length does not need to fit into that 2 mm gap. Use the complete example for the geometry, NTFF setup, and commands to run and plot the results.
For a passive receiving port in a multiport model, add its own
EigenmodePort and VirtualWaveguide but no EigenmodeExcitation for
that port. During time stepping, a model with no eigenmode excitations is
allowed only when every eigenmode port has a virtual guide; it records raw
modal spectra without normalized S-parameters. With geometry_only=True,
ports can be inspected without an excitation or virtual guide. Combine an
EigenmodeBand, EigenmodePort, and EigenmodeFieldOutput to export
tracked fields, as in Common-mode galleries.
VirtualWaveguide arguments
gprMax.VirtualWaveguide(
port=1, length_cells=30, pml_cells=12,
source_clearance_cells=6, pml_profile=None,
)
Argument |
Default |
Meaning and constraints |
|---|---|---|
|
Required |
Positive, one-based number of an existing |
|
|
Total auxiliary-guide length, including its PML and source clearance. A positive integer, at least |
|
|
Thickness of the auxiliary guide’s absorbing layer at the end away from the port. An integer of at least 2 cells. |
|
|
Distance between the internal source plane and the start of that PML. A positive integer number of cells, at least 1. |
|
|
Name of an existing reusable PML profile. |
Only port is required: gprMax.VirtualWaveguide(port=1) uses the
defaults above. Cell counts refer to the grid containing the port, along
the guide axis. For a 1 mm cell size, 30 cells mean a 30 mm auxiliary guide.
The remaining
length_cells - pml_cells - source_clearance_cells cells separate the
source from the port connection: 12 cells with the defaults. Increasing the
PML thickness or source clearance at fixed total length reduces this
separation; increase the total length as needed. These constraints also
apply to passive guides.
Hash command: #virtual_waveguide
#virtual_waveguide: 1 30 12 6
The required port number identifies an existing #eigenmode_port. Cell
counts default to 30, 12, and 6, with the same constraints as the Python API.
The optional final token names a reusable PML profile. An unexcited virtual
port provides a passive matched termination.
Selecting modal channels
Inspect the solved E/H profile before assigning a physical mode name. Mode numbers are solver ordering, not guaranteed TE/TM labels. A near tie can rotate the raw solver basis even in an unchanged symmetric guide.
For branch assignment, degeneracy, and polarization selection, see
Eigenmode tracking guide. The tracking inputs remain part of
gprMax.EigenmodePort; the dedicated guide explains their use.
Coherent and quadrature excitation
Add distinct EigenmodeExcitation channels with the same base waveform
and set their amplitude and phase_deg. For a circular guide with the
assignments above, the following replaces the single excitation:
scene.add(gprMax.EigenmodeExcitation(
port=1, mode=1, waveform="auto", amplitude=1, phase_deg=0,
))
scene.add(gprMax.EigenmodeExcitation(
port=1, mode=2, waveform="auto", amplitude=1, phase_deg=90,
))
The 90-degree relative phase produces quadrature. This is one combined driven state, so read its active reflection outputs; it does not measure two independent S-matrix columns. Requested polarization vectors need not be orthogonal: use the full power matrix for their combined power rather than summing individual squared amplitudes. See Reading coefficients and validity.
Measuring a network
Reading coefficients and validity
A port monitor compares the simulated electric and magnetic fields with the
reference patterns for its requested modes. It reports an incident and an
outgoing coefficient for each mode and frequency: complex numbers that
describe how much of each wave is present, including its amplitude and phase.
An S-parameter divides an outgoing coefficient by the incident coefficient of
the driven channel. For example, S11 describes reflection at the driven port,
and S21 describes the response at port 2 to a drive at port 1.
A number in an output array is not enough to tell whether it is usable. The reference pattern may be missing or unsuitable; two waves may be too similar to separate reliably; or the source may provide almost no signal at that frequency. There is also a physical distinction: a decaying field can have a meaningful coefficient without carrying forward real power on its own. Dividing by a nearly zero incident signal can produce a large, misleading S-parameter even when the individual coefficients are well defined.
The validity masks record these different checks for each mode and frequency. A mask is an array of true/false values, stored as 1/0 in HDF5. True means that the value passes the named check; false means that it should not be used for that purpose. A false mask does not mean zero reflection, zero transmission, or an absent field. Keep the mask alongside the data when plotting or calculating results, including when a stored coefficient is finite or zero.
The first two masks check the reference patterns before measuring wave amounts. The next two check the measured coefficients. The final two check the S-parameter ratio after division by the incident signal:
Port HDF5 dataset |
Shape |
Meaning in plain language |
|---|---|---|
|
|
We have a tracked reference pattern to compare with the measured fields. This alone does not guarantee that incoming and outgoing amounts can be separated. |
|
|
The reference pattern supports forward real power and can be scaled to a known power. A purely decaying reference does not pass this check. |
|
|
The incoming and outgoing amounts can be separated without a numerically ambiguous fit. A decaying field can still pass this check. |
|
|
The coefficients are usable and also pass the physical power checks, including a usable modal power matrix. They can be used in power calculations with the normalization described below. |
|
|
The coefficients needed for this S ratio are usable, and the incident signal used as its denominator is strong enough to divide by. |
|
|
The S ratio also passes the physical power checks for both the driven input and the measured output. Use this mask when interpreting reflection or transmission as power. |

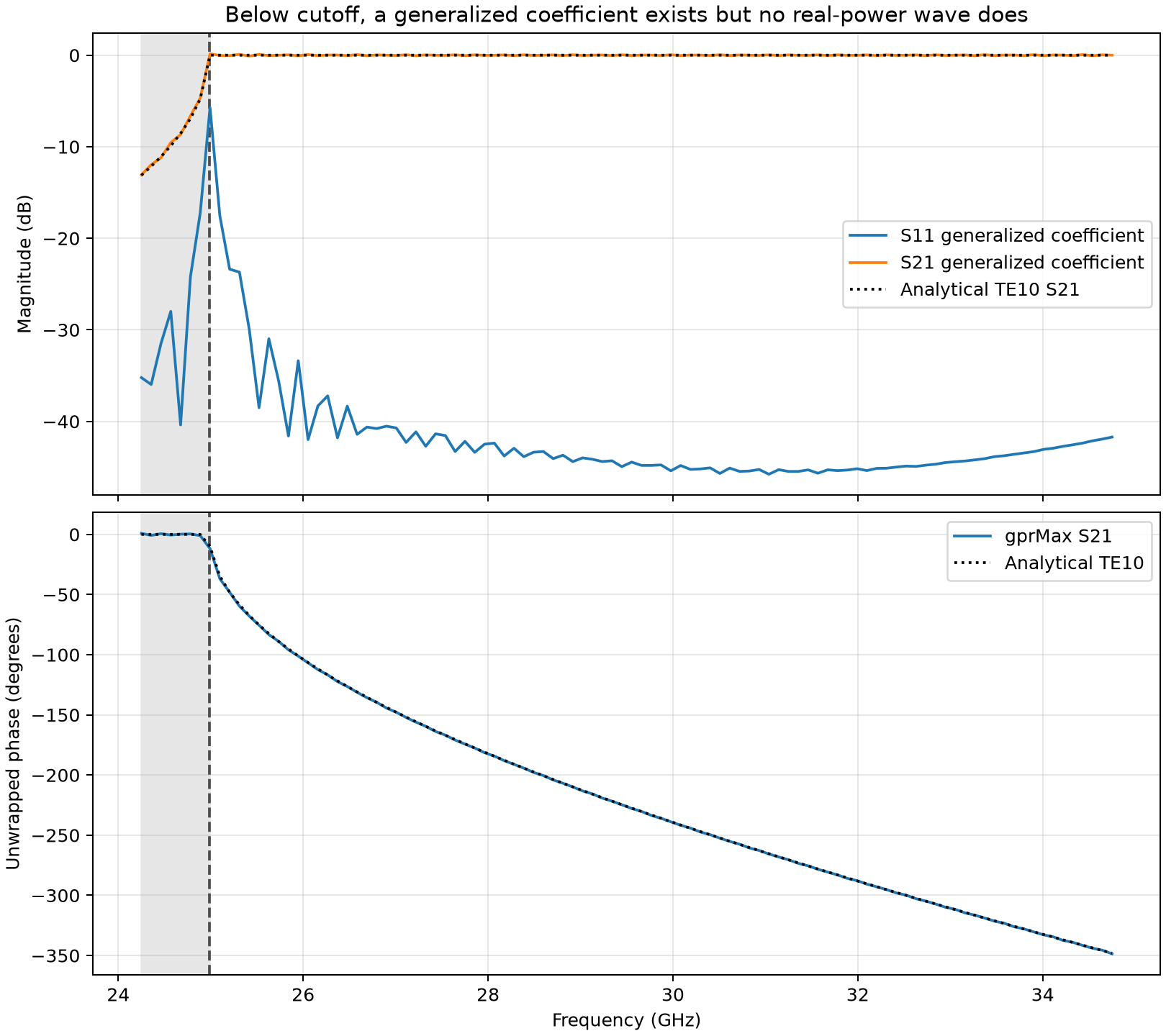

For example, below cutoff coefficient_valid may be true while
power_wave_valid is false: the monitor can describe the decaying field,
but its coefficient squared is not transported power. Near exact cutoff,
reference_basis_valid may be true while coefficient_valid is false:
a pattern exists, but the forward and backward contributions are too similar
to separate reliably. At a weakly excited frequency, the individual
coefficients may pass their checks while coefficient_valid_S is false
because their ratio would divide by too little incident signal. The incident
floor is -60 dB relative to the peak within each reference-normalization
class; this is a signal-strength check, not an accuracy guarantee.
Here F is the number of output frequencies and M is the number of
monitored modes at that port. All six masks share the (M, F) shape of
incident, outgoing, and S. The mode axis follows the port’s
mode_indices order, and the frequency axis follows frequency. Raw
spectra exist for passive-only runs, while S and its masks exist only for
a single driven channel. Multiple drives instead write active_S,
active_S_driven, coefficient_valid_active_S, and
power_wave_valid_active_S. Undriven entries have no active-S ratio.
Use the coefficient mask to inspect modal responses, including decaying fields. Use the power-wave mask to select the subset that also supports a physical power interpretation:
import h5py
import numpy as np
with h5py.File("straight_waveguide.h5", "r") as output:
port = output["eigenmode_ports/port2"]
frequency = port["frequency"][...]
s21 = port["S"][0] # first entry in this port's monitored mode list
coefficient_mask = port["coefficient_valid_S"][0].astype(bool)
power_mask = port["power_wave_valid_S"][0].astype(bool)
coefficient_frequency = frequency[coefficient_mask]
coefficient_db = 20 * np.log10(np.abs(s21[coefficient_mask]))
power_wave_frequency = frequency[power_mask]
power_wave_db = 20 * np.log10(np.abs(s21[power_mask]))
The CSV contains one row per frequency and destination channel, with complex
S, magnitude, dB magnitude, phase, coefficient_magnitude_squared,
coefficient_valid, and power_wave_valid. CSV masks refer to the ratio
in that row. The active-S CSV uses these same two mask column names.
For an orthogonal, power-normalized set of propagating modes, a coefficient’s
magnitude squared gives its power, and an S-parameter’s magnitude squared
gives the corresponding power ratio. With non-orthogonal modes, the modes
also contribute power through their interaction: use power_matrix and
keep these cross terms instead of adding individual squared magnitudes.
electric_cross_power_matrix additionally describes the total-field power
in lossy ports. Both matrices have shape (F, M, M);
power_matrix_valid and condition_number have shape (F,).
condition_number describes how sensitive the coefficient fit is to small
numerical changes; a large value indicates a more difficult separation.
Invalid ratios remain in the frequency array as NaNs.
Passing these masks is necessary for the stated interpretation, but it does not prove that the simulation has converged. Check the mesh, run duration, port placement, and anchor spacing as well. A usable coefficient can still be inaccurate if the physical setup or its numerical resolution is poor.
Complete matrices with EigenmodeStudy
An S-parameter matrix describes how waves entering a device produce waves
leaving it. A channel is one (port, mode) pair: the port identifies a
cross-section, and the mode identifies a particular field pattern at that
cross-section. A port with two monitored modes contributes two channels.
The complete matrix includes reflection, transmission, and conversion between
all declared channels.
Why one excitation gives one column
Consider a device with a left port numbered 1 and a right port numbered 2, with one propagating mode at each. At a particular frequency, let \(a_1,a_2\) be the complex amplitudes (magnitude and phase) of waves travelling toward the device and \(b_1,b_2\) those travelling away from it. The matrix relation is
The first index of \(S_{ij}\) names the output channel and the second names the input channel. Driving port 1 while no wave enters from port 2 sets \(a_2=0\), giving \(b_1=S_{11}a_1\) and \(b_2=S_{21}a_1\). Measuring both ports therefore determines the first column. It does not reveal how the device responds to a wave entering from port 2.
FDTD case |
Waves observed at both ports |
Matrix entries determined |
|---|---|---|
Drive port 1, mode 1 |
Reflection back to port 1; transmission to port 2 |
First column: S11 and S21 |
Drive port 2, mode 1 |
Transmission to port 1; reflection back to port 2 |
Second column: S12 and S22 |
In each case the finite-difference time-domain (FDTD) solver advances the electric and magnetic fields through time. A broadband pulse excites many frequencies, and the port’s discrete Fourier transform (DFT) extracts the response at every requested frequency from that time record. This gives a column at many frequencies; it still probes only one input channel. Adding DFT bins refines the frequency sampling. Adding modal anchors refines the frequency-dependent field profiles. Neither supplies the missing excitation from the other channel.
Driving both ports simultaneously with one fixed combination of amplitudes
and phases gives a combined response, such as
\(b_1=S_{11}a_1+S_{12}a_2\). That single measurement cannot separate the
two contributions. It is useful for active reflection or array radiation,
while independent excitation cases provide the information needed for a full
matrix. Reciprocity can relate S12 and S21 under suitable assumptions, but it
does not generally determine S22 from S11; EigenmodeStudy measures every
input channel instead of assuming symmetry.
What the study runs and reuses
EigenmodeStudy manages these independent FDTD cases and assembles their
results. Keep the device geometry, materials, ports, and reference planes
fixed, and schedule each declared (port, mode) channel once. The study:
Builds the geometry, solves the modal anchor fields for the ports, and runs the first excitation through time.
Moves the scene’s one excitation object to the next scheduled port and mode, preparing its waveform injection from the cached modal fields.
Clears the electric and magnetic fields, PML absorbing-boundary histories, and port DFT accumulators before advancing the next case through time. Responses from different cases therefore do not overlap.
Collects incoming and outgoing waves at every monitored channel and assembles an S matrix at each requested frequency.
Geometry and modal solves are reused, but each excitation still requires its own time-domain simulation. Reusing the modal basis avoids repeating the cross-section eigenmode calculations for an unchanged device.
In the ideal two-port example above, only the driven channel has an incoming wave, so dividing the measured outgoing waves by that incoming amplitude directly gives one column. Real simulations can also measure incoming waves at nominally passive channels, for example from imperfect absorbing boundaries. The study retains these measurements. It puts the incoming vectors from all cases into the columns of \(A(f)\) and the outgoing vectors into \(B(f)\), then solves \(B(f)=S(f)A(f)\) at each frequency. This separates the responses using the measured excitations. Frequencies with missing or insufficiently independent measurements are marked invalid; the study also retains the measured matrices and conditioning diagnostics. This correction does not replace checking the mesh, absorbing boundaries, and simulation duration for convergence.
Python example: excite each port in turn
After constructing a scene with geometry, materials, an EigenmodeBand,
and ports 1 and 2 each declaring modes=(1,), add the following. The scene
must not already contain another EigenmodeExcitation. Example 4 below
provides the complete runnable geometry and script.
import gprMax
excitation = gprMax.EigenmodeExcitation(port=1, mode=1, waveform="auto")
scene.add(excitation)
cases = [
gprMax.StudyCase(
"drive_port_1",
[gprMax.ObjectState(excitation, port=1, mode=1)],
),
gprMax.StudyCase(
"drive_port_2",
[gprMax.ObjectState(excitation, port=2, mode=1)],
),
]
study = gprMax.EigenmodeStudy(cases)
gprMax.run(scenes=[scene], study=study, outputfile="two_port")
StudyCase names one run. Its ObjectState selects the port and
mode of the same excitation object for that run; it does not add a
second simultaneous source. Here one call to gprMax.run performs two
FDTD cases and writes the aggregate two_port_study.h5.
More modes mean more channels
If both ports instead declare modes=(1, 2), the four channels are
(1, 1), (1, 2), (2, 1), and (2, 2). Replace the two-case
schedule above with one case for each pair:
channels = [(1, 1), (1, 2), (2, 1), (2, 2)]
cases = [
gprMax.StudyCase(
f"drive_port_{port}_mode_{mode}",
[gprMax.ObjectState(excitation, port=port, mode=mode)],
)
for port, mode in channels
]
study = gprMax.EigenmodeStudy(cases)
Pass this study to gprMax.run as above. Four FDTD cases produce a
4 by 4 matrix, with 16 entries at each frequency. For example, the case
driving port 1’s mode 1 measures reflection into both modes of port 1 and
transmission into both modes of port 2. Driving port 1’s mode 2 is a separate
case because its field pattern is a different input. With C declared
channels and F DFT frequencies, the study schedules C cases and
returns an array of shape (F, C, C). Include every declared channel exactly
once; the study checks the schedule before running it. At a given frequency,
use the validity masks below to distinguish usable coefficients from entries
that support a propagating-power interpretation.
Reading the assembled matrix
study.result is an EigenmodeStudyResult. Its s,
coefficient_valid_s, and power_wave_valid_s arrays use
(frequency, output_channel, input_channel) order. channel_ports and
channel_modes identify the channels. The aggregate
<output>_study.h5 stores S, coefficient_valid_S,
power_wave_valid_S, measured incident_matrix and outgoing_matrix,
coefficient_valid_wave_matrix, power_wave_valid_matrix, and the
de-embedding diagnostics. Load it later with
gprMax.EigenmodeStudyResult.from_hdf5(path). The Python wave-mask attributes
have the same names as their datasets.
Use the channel metadata to look up the output row and input column. After the two-port run, for example:
result = study.result
channels = list(zip(result.channel_ports, result.channel_modes))
left = channels.index((1, 1))
right = channels.index((2, 1))
s11 = result.s[:, left, left] # reflection for excitation from the left
s21 = result.s[:, right, left] # transmission from left to right
s12 = result.s[:, left, right] # transmission from right to left
s22 = result.s[:, right, right] # reflection for excitation from the right
valid_s21 = result.power_wave_valid_s[:, right, left]
frequency = result.frequency[valid_s21]
usable_s21 = s21[valid_s21]
The same lookup works with multiple modes: a channel is always a port/mode
pair, and the array indices are zero-based even though port and mode numbers
are one-based. s contains complex amplitude ratios, including phase;
use the coefficient mask instead when inspecting generalized below-cutoff
responses rather than propagating power waves.
Each case stores study/eigenmode_response/S_column with
coefficient_valid_S_column and power_wave_valid_S_column. Its measured
incident and outgoing arrays use coefficient_valid_wave and
power_wave_valid. These case arrays have shape (F, C) for C channels.
Restart with gprMax.run(..., study=study, i=N); a compatible aggregate
retains already completed cases.
Hash command: #study
Supply the independent excitation cases in a CSV file:
#study: eigenmode cases.csv
For a two-port model with one monitored mode per port, cases.csv contains:
case_id,object_id,port,mode
drive_port_1,eigenmode_excitation_1,1,1
drive_port_2,eigenmode_excitation_1,2,1
eigenmode_excitation_1 identifies the scene’s single excitation object.
Each row selects one input channel. See Model Building for the full
study-command syntax.
The modal projection, full power matrices, and measured-excitation matrix solve are derived in Modal Receivers, Direct DFT, and S-parameters.
Tracking across frequency
Set tracking="auto" on a port to associate its modes across the anchor
frequencies. Keep the tracking, verification, and basis-selection arguments
in the same EigenmodePort definition as the aperture and mode list.
See Eigenmode tracking guide for the argument tables, workflow, symmetry
selection, diagnostics, and worked examples; Eigenmode tracking theory
derives the overlap, subspace, and alignment methods.
Simulation examples
Run these commands from the repository root with gprMax installed in the
active environment. Every model defines build_scene() without running on
import. Its main() writes beside the script by default, so the adjacent
no-argument plot_results.py can find the output. --output PATH changes
the output stem; update plotting paths if using it. Scripts that expose
--gpu N use it to select a CUDA device; Examples 8 and 9 run on the CPU.
Other backends can be selected through gprMax.run.
The FDFD setup is performed on the host before device time stepping.
Example 1: a straight waveguide
Start with the uniform 2D TM dielectric slab. Both ports monitor its two guided modes, while port 1 excites mode 1. The 25 mm free-space margins around the 20 mm core include its evanescent tails. The guide continues through the x-directed domain PML. Receivers and snapshots illustrate propagation but are not used for the modal S-parameter calculation.
Snapshot(..., fileext=".h5") requests the HDF5 field arrays consumed by
the plotter. Set the extension explicitly in the Python API; the snapshot
default is VTK-HDF.
Use the three commands in the first two-port workflow above.
Inspect confinement and symmetry in the modal figures, then check that the
waveform fits the time window. straight_waveguide_sparameters.png should
show mode-1 S21 near 0 dB with small reflection and mode-2 conversion.
straight_waveguide_field_propagation.png follows twelve Ez snapshots
through right-PML absorption. Residual ripple depends on grid dispersion,
finite recording time, discretization, and boundary reflections.
Fig. 11 Example 1: mode 1 transmits through the uniform guide; reflected and converted components are much smaller on the plotted scale.
Fig. 12 The launched Ez pulse crosses the 2D guide and exits through the
right-hand PML.
Try mode=2 in the excitation, or refine the mesh and compare S11/S21.
Temporarily requesting modes=(1, 2, 3, 4) exposes artificial aperture box
modes in this geometry. Inspect their boundary interaction and sensitivity to
aperture size before including additional modes in an analysis.
Example 2: a curved waveguide
Two cylindrical sectors form a tight 90-degree bend. This example measures 4–8 GHz with 81 DFT bins. Port 2 has equal y coordinates and points in the negative y direction, into the bend; it monitors the same two guided modes.
python examples/features/eigenmode_ports/example_2_curved_waveguide/curved_waveguide.py --geometry-only
python examples/features/eigenmode_ports/example_2_curved_waveguide/curved_waveguide.py
python examples/features/eigenmode_ports/example_2_curved_waveguide/plot_results.py
curved_waveguide_sparameters.png shows reflection and conversion into the
second output mode; curved_waveguide_field_propagation.png follows the
pulse around the bend. Compare with the straight guide over their shared
4–6 GHz range. Increase the bend radius and inspect how reflection and modal
conversion change. If modal profiles exchange character with frequency,
investigate tracking rather than assuming the integer mode label is stable.
Example 3: a pyramidal horn antenna
The hollow rectangular feed expands through nine staircased PEC sections. The fundamental TE10-like mode is launched over 8–12 GHz, and a virtual guide provides the matched continuation behind the internal port.
The 101-point band has 40 MHz spacing. frequencies adds four off-grid
half-GHz bins after deduplication, giving 105 modal frequencies. The NTFF
transform uses just nine of those bins. anchors="auto" separately tracks
the TE10-like field profile and significant pulse spectrum. A below-cutoff
guard anchor may warn and remain only in the monitor reference bank; it is
excluded from one-watt source synthesis.
python examples/features/eigenmode_ports/example_3_antenna_and_farfield/horn_antenna.py --geometry-only
python examples/features/eigenmode_ports/example_3_antenna_and_farfield/horn_antenna.py
python examples/features/eigenmode_ports/example_3_antenna_and_farfield/plot_results.py
Inspect the feed polarization and geometry before the 3D run. The plotter
writes horn_sparameters.png, horn_farfield_3d.png, and
horn_principal_planes.png. The main beam should point along +x. The xz
cut is the E-plane and xy is the H-plane for the launched polarization.
Directivity describes the radiation pattern; gain includes radiation
efficiency, and realized gain also includes feed mismatch. The closed surface
is possible because the region behind the physical feed is homogeneous air.
Refine the mesh and vary the NTFF surface, feed length, auxiliary PML, and
time window before using the values quantitatively.
Fig. 13 Example 3: the horn’s principal-plane patterns at 10 GHz. The main beam points along +x, at zero degrees in both cuts.
Example 4: the complete dominant-mode S matrix
A microstrip with a central 2 mm series gap provides nontrivial reflection
and transmission. One dominant quasi-TEM mode is monitored at each port.
build_scene() returns both the scene and its two-case EigenmodeStudy.
The cases change the same excitation object between ports 1 and 2.
python examples/features/eigenmode_ports/example_4_complete_s_matrix/complete_s_matrix.py --geometry-only
python examples/features/eigenmode_ports/example_4_complete_s_matrix/complete_s_matrix.py
python examples/features/eigenmode_ports/example_4_complete_s_matrix/plot_results.py
The aggregate complete_s_matrix_study.h5 contains the 2 by 2 matrix at
101 frequencies from 4 to 8 GHz. The second FDTD case reuses the first build’s
geometry and modal basis. The solver retains all measured incident waves,
including those at nominally passive channels, and solves B = S A.
Incomplete or ill-conditioned incident bases invalidate the affected matrix
bins while retaining the measured matrices and diagnostics.
complete_s_matrix.png plots magnitude and phase for all four entries.
Compare both S21 and S12 panels: this reciprocal structure should give equal
complex transmission responses within numerical error. Its geometric symmetry
also makes S11 and S22 agree. To resume an interrupted study, pass
--restart 2 with the same output stem and an existing compatible aggregate.
Example 5: a phased array and active S-parameters
Four virtual-waveguide-fed open apertures lie 18 mm apart along y. All four channels are driven in one run, with equal amplitudes and a constant -108 degree progressive phase. Each port uses a single 10 GHz modal anchor: this example demonstrates array excitation with a fixed reference profile rather than a converged broadband modal interpolation study.
python examples/features/eigenmode_ports/example_5_phased_array/phased_array.py --geometry-only
python examples/features/eigenmode_ports/example_5_phased_array/phased_array.py
python examples/features/eigenmode_ports/example_5_phased_array/plot_results.py
Ten uniform modal bins plus exact 9, 10, and 11 GHz values produce thirteen output frequencies. NTFF uses the five integer-GHz bins and stores the dense one-degree xy-plane cut. Total radiated power for directivity and gain comes from an internal full-sphere quadrature, even though only the cut is saved.
phased_array_active_sparameters.csv and HDF5 active_S describe this
coherent array state. Active reflection at channel q is its outgoing wave
divided by its measured incident wave, so it depends on all drive weights.
It is not an independent column of the S matrix. Use separate study cases to
recover the matrix.
The array-factor target is approximately 30 degrees from +x toward +y at
10 GHz. A constant phase increment makes the peak angle vary with frequency
(beam squint); aperture patterns, mutual coupling, and the grid also shift
the simulated peak. Try true delays through delay_s and compare the
frequency dependence. Keep each delayed pulse within the recording window.
Example 6: near and below cutoff
The 6 mm wide air-filled rectangular guide has analytical TE10 cutoff near 24.9827 GHz. Seven of its 100 requested DFT points lie below cutoff. Explicit anchors sample every below-cutoff bin, the first nine propagating bins, and more widely spaced points thereafter. Additional candidates cover the automatic pulse’s transition spectrum.
python examples/features/eigenmode_ports/example_6_near_cutoff/near_cutoff.py --geometry-only
python examples/features/eigenmode_ports/example_6_near_cutoff/near_cutoff.py
python examples/features/eigenmode_ports/example_6_near_cutoff/plot_results.py
near_cutoff_sparameters.png compares coefficient-valid S11/S21 and the
analytical uniform-guide attenuation and phase. Shading identifies the
below-cutoff region. There, coefficient_valid_S may be true while
power_wave_valid_S is false. The decaying field coefficient is useful,
but its squared magnitude is not transported real power. At exact cutoff
the forward/backward basis coalesces: inspect conditioning, move the DFT grid,
and refine the anchor sampling to check sensitivity.
Fig. 14 Example 6: the shaded frequencies lie below TE10 cutoff. The plotted generalized coefficient can describe a decaying field there, but not a transported real-power ratio.
Example 7: legacy tracking of circular TE11
The circular PEC guide assigns global y electric polarization to mode 1
and global -x polarization to mode 2 using degenerate=(1, 2) and
mode_polarizations="y" on both ports. Automatic broadband
anchors preserve those physical labels. The source uses a virtual guide;
the receiving port sits at the opposite longitudinal PML interface.
python examples/features/eigenmode_ports/example_7_legacy_degenerate_te11/circular_te11.py --geometry-only
python examples/features/eigenmode_ports/example_7_legacy_degenerate_te11/circular_te11.py --mode 1
python examples/features/eigenmode_ports/example_7_legacy_degenerate_te11/plot_results.py --mode 1
python examples/features/eigenmode_ports/example_7_legacy_degenerate_te11/circular_te11.py --mode 2
python examples/features/eigenmode_ports/example_7_legacy_degenerate_te11/plot_results.py --mode 2
Only the excitation mode changes between the two full runs. Their separate
result plots show reflection and transmission into each labelled channel
and the centre receiver’s Ex/Ey traces. The folder includes the equivalent
circular_te11.in hash model and instructions for diagonal or quadrature
excitation.
Both ports set plot_fields=True (y after auto in the hash model).
The standard gprMax modal plotter uses the aligned basis and includes the
requested electric direction in each title. A single run generates pictures
for both modes, regardless of which channel is excited. The unmodified
source-port pictures below show E on the left and H on the right, with one
row per retained anchor, including guard frequencies. Local u/v are global
x/y; E and H magnitudes are normalised independently.
Fig. 15 Degenerate TE11 mode 1: global y electric polarization.
Fig. 16 Degenerate TE11 mode 2: global x electric polarization.
Example 8: automatic circular TE11 tracking
The circular-guide simulation detects the TE11 pair automatically at both
ports, using tracking="auto" without a manually declared degenerate
group. First inspect its geometry-only fields; then excite mode 1 or 2 and
plot the co- and cross-polarized reflection and transmission. The source
has a virtual-waveguide feed and the receiving end continues into a PML.
See Worked simulation: the circular TE11 pair for the complete workflow.
python examples/features/eigenmode_ports/example_8_auto_degenerate_te11/auto_degenerate_te11.py --geometry-only
python examples/features/eigenmode_ports/example_8_auto_degenerate_te11/auto_degenerate_te11.py --mode 1
python examples/features/eigenmode_ports/example_8_auto_degenerate_te11/plot_results.py --mode 1
Example 9: automatic crossing in a square anisotropic bore
A square PEC guide filled with diag(2.25, 1, 1) has TE10 and TE02
branches whose raw eigenvalue ranks exchange. Both ports automatically
track channels 3 and 4 through that crossing. Inspect the modal fields,
launch either channel, then check modal S11/S21 and the off-centre probe’s
polarization. See Worked simulation: branch crossing in a square anisotropic guide for both launched-mode runs
and the tracking diagnostics.
python examples/features/eigenmode_ports/example_9_C2v_square_anisotropic_crossing/auto_mode_crossing.py --geometry-only
python examples/features/eigenmode_ports/example_9_C2v_square_anisotropic_crossing/auto_mode_crossing.py --mode 3
python examples/features/eigenmode_ports/example_9_C2v_square_anisotropic_crossing/plot_results.py --mode 3
Miscellaneous
PEC wall construction and averaging
At an air/PEC boundary, the practical question is which material wins at a shared electric-field sample? Electric fields are stored on the edges of grid cells, so an air cell and a PEC cell can share a sample. If PEC wins, the electric field at that sample is held at zero. If air wins, it can be nonzero.
Example 7 first fills the region with PEC, then carves out an air bore. The following rules explain what happens at the bore wall:
Construction |
Result at the boundary |
|---|---|
PEC first, then an air bore with |
PEC wins at samples shared with the remaining PEC wall. The bore’s interior becomes air. Example 7 uses this setting. |
PEC first, then an air bore with |
Air wins where the bore writes its samples, including shared wall samples that it touches. The later object can overwrite the earlier PEC assignment there. |
Air or dielectric fill first, then PEC walls |
PEC wins where the walls write their samples. Example 9 uses this order for its anisotropic fill, which assigns directional materials without averaging. |
Thus, averaging="n" means direct assignment: the later object wins at the
samples it writes. With averaging="y", the remaining neighbouring PEC cells
keep their shared electric samples at zero. In hash inputs, the trailing
y or n on a #box or #cylinder command selects this setting.
The mode solver follows the winner. It reads the final material at each electric-field sample, exactly where FDTD stores that field. It does not reapply the earlier PEC volume over an air sample. Both averaging settings therefore work with both legacy and automatic tracking. The magnetic-field reconstruction needed to maintain this agreement is described in Eigenmode ports: theory and numerical methods.
Choosing a different winner changes the wall represented on the grid. It can change the effective bore size, cutoff frequency, and impedance, even though FDFD and FDTD agree with each other. Neither setting makes a staircased circle perfectly round; check mesh convergence for the intended physical geometry. For unexpectedly large reflection in a uniform guide, also check frequency anchor spacing, PML thickness, and recording duration.
The automatic circular-pair and anisotropic-crossing demonstrations are Worked simulation: the circular TE11 pair and Worked simulation: branch crossing in a square anisotropic guide in the tracking guide.
Direct eigenmode ports inside an HSG subgrid
The same Python objects can be added to one SubGridHSG instead of the
main scene. Keep the band, all associated ports, waveform, and excitations
in that same grid. With autotranslate=True the port coordinates remain
global physical coordinates. The FDFD solver reads the final fine-grid
component material IDs and transverse cell sizes, and injection and monitoring
advance at every fine time step.
The entire aperture and its staggered Yee stencil must lie strictly within
the subgrid working region. No endpoint or adjacent normal magnetic plane may
touch the HSG coupling surface or enter the auxiliary/PML region. A modal
network cannot span different grids because its band and normalization are
local to the owning grid. Results appear under
/subgrids/<subgrid ID>/eigenmode_ports/portN with fine dx_dy_dz and
dt metadata; the CSV ends in _<subgrid ID>_sparameters.csv.
Direct HSG ports and their optional virtual guides use the CPU or CUDA update
cycle and do not support MPI. CUDA auxiliary guides share their owner’s device
context and local timestep; their fields remain on the device during updates.
See Advanced Model Building (Python API) for subgrid construction.
Supported configurations
Ordinary eigenmode injection and monitoring support CPU, CUDA, OpenCL, and Metal, including 2D TE/TM models. Main-grid direct ports and virtual guides also support domain-decomposed MPI CPU models. Direct HSG ports and their virtual guides run on CPU or CUDA and do not support MPI. An SIBC wall imposes the stricter CPU main-grid restrictions in Surface impedance and impedance volumes.
An EigenmodeStudy reuses one fixed model through independent cases; its
supported combinations are documented in the study reference in
Advanced Model Building (Python API). Support for an ordinary single run does not by itself
imply support for that run inside a reusable study.
Reading lossy and near-cutoff results
With gprMax’s sign convention, a passive forward lossy mode has negative
Im(n_eff). Its field amplitude decays with propagation. Do not change
the sign or take an absolute value to make it resemble a different solver’s
display convention; compare attenuation and power in physical directions.
See Phasor, Fourier, and Propagation Conventions for the definitions.
Near cutoff, incoming and outgoing patterns can become difficult to separate. Below cutoff, a meaningful field coefficient need not represent transported real power. Check masks and conditioning, move bins away from the exact singularity, and refine anchors. Neither more frequency bins nor a finite output number certifies accuracy.
Troubleshooting
Accuracy checklist
Inspect geometry-only modal and waveform plots before a full solve. Check field confinement, symmetry, polarization, and enough room for the pulse.
Keep port planes in uniform guide sections and include the whole guided field in the aperture. Move bends and discontinuities away from the plane.
Provide a physical PML continuation or virtual termination. A reflection from the feed end can contaminate the device’s measured reflection.
Refine mesh spacing, anchor spacing, and recording duration independently. Run long enough for propagation and ring-down; more bins only sample the same finite record more densely.
Use
waveform="auto"or a sufficiently band-limited custom waveform. A warning about discarded DC or Nyquist content means the sampled pulse needs attention; the source cannot represent arbitrary frequencies.Treat overlap warnings as a reason to inspect neighbouring profiles. With legacy tracking, declare genuinely degenerate groups when appropriate; with automatic tracking, inspect the detected groups and their polarizations. Do not use a fixed single anchor to conceal an incorrect physical channel label.
Common warning and error messages
The excerpts below omit port IDs, frequencies, and other run-specific values. Inspect the geometry-only field plots and the affected frequency range before changing the model.
Warning or error excerpt |
Suggested fix |
|---|---|
|
Inspect neighbouring anchor profiles, mode ordering, and cutoff.
Add closer frequency anchors. For crossings or degenerate modes,
use |
|
Inspect the tracked fields and numerical validity near that interval. Refine anchor spacing and mesh resolution, and check that the aperture contains the whole mode. Check the candidate coverage using the diagnostics described in Eigenmode tracking guide. A single anchor selects a fixed basis; it does not resolve an unidentified branch. |
|
Inspect the field near the aperture edge and the reported reason. For an open dielectric guide, enlarge the transverse window and check convergence with window size and mesh spacing. Check whether the mode remains guided near cutoff. Numerically valid anchors can still represent a poorly confined field. |
|
Use per-port |
|
Use |
|
Check waveform amplitude, finite sample values, source timing, and recording duration. Ensure the pulse occurs within the run and contains positive-frequency energy away from DC and Nyquist. |
|
Provide a uniform guide continuation into a nonzero PML and place the port at the indicated interface, or use the appropriate virtual-guide termination. Check PML thickness and reflection convergence. During a geometry-only inspection this warning concerns the subsequent driven run. |
|
Move the source plane inward by at least one cell so its staggered magnetic-field plane fits inside the grid. Also check the aperture bounds and any PML or subgrid clearance requirements. |
|
Move the entire aperture inward, including its adjacent magnetic plane, or enlarge the subgrid working region. Keep the stencil away from the coupling surface and auxiliary/PML region. See the HSG notes above. |
|
Give each port a unique number and define the referenced waveform before its excitation. Keep the band, ports, waveform, and excitations in the same owning grid. |
|
With legacy tracking, verify that the declared group contains distinct modes from the same physical degenerate subspace. Inspect cutoff and field profiles, then refine the mesh and anchors. Automatic tracking can detect groups without a manual declaration. |
|
Prefer one global transverse direction when its inferred orthogonal partner matches the intended basis. Both trackers retain explicit shared pairs, preserving their signs and nonorthogonal directions; mappings require legacy tracking. These compatibility forms will be removed in gprMax 5.0; see Eigenmode tracking guide for migration and phase conventions. |
|
Supply one nonzero direction in the port’s transverse plane, such as
|
The numerical limitations, convergence considerations, and validation evidence are collected in Eigenmode ports: theory and numerical methods.
See also
Eigenmode ports: theory and numerical methods derives the modal operators, broadband source synthesis, and measurement equations. Eigenmode tracking guide explains tracking inputs and examples; Eigenmode tracking theory derives branch assignment and symmetry-based basis construction.
